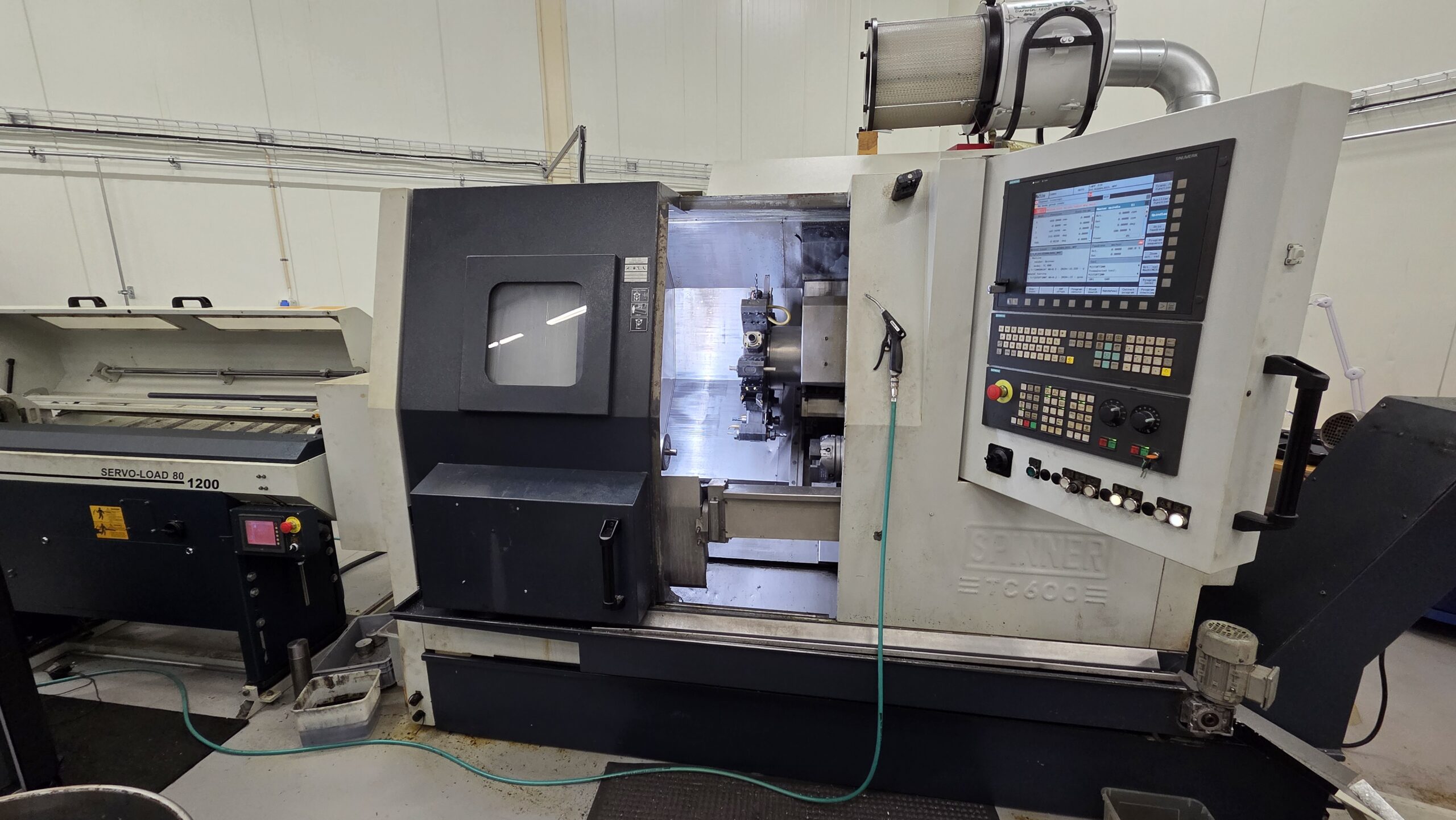

SPINNER TC 600‑65 SMCY CNC dreiebenk med c og y akse

• Model: TC 600‑65 SMCY

• Brand: SPINNER

• Year of Manufacture: 2011

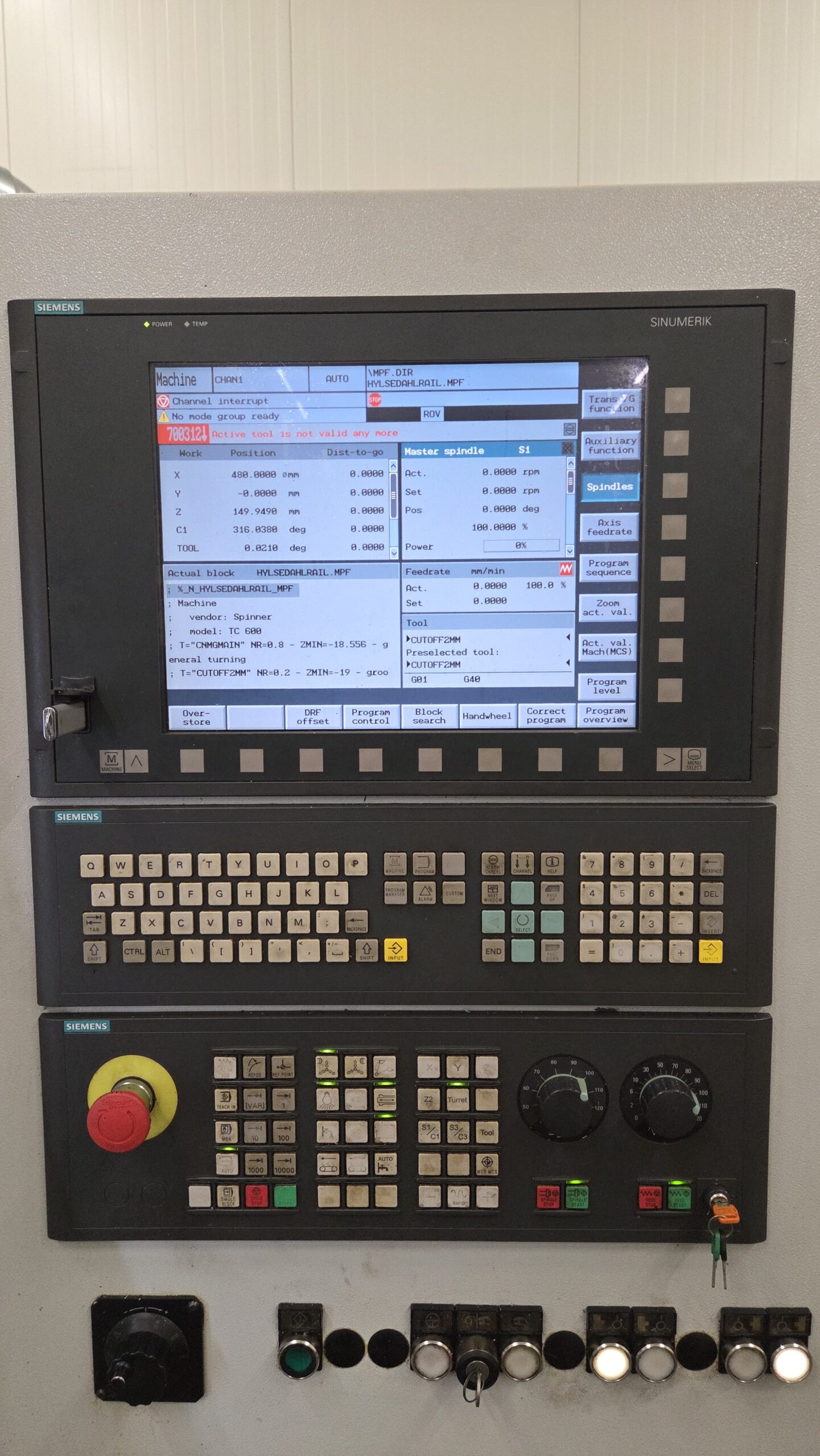

• Control Unit: Siemens 840 DE

Main Technical Data

Spindle Performance

Main Spindle

• Speed range: 0 – 4,000 rpm

• Power: up to 34 kW

• Bar capacity: up to 65 mm diameter

Sub-Spindle

• Speed range: 0 – 6,000 rpm

• Power: up to 16 kW

• Chuck size: 165 mm,

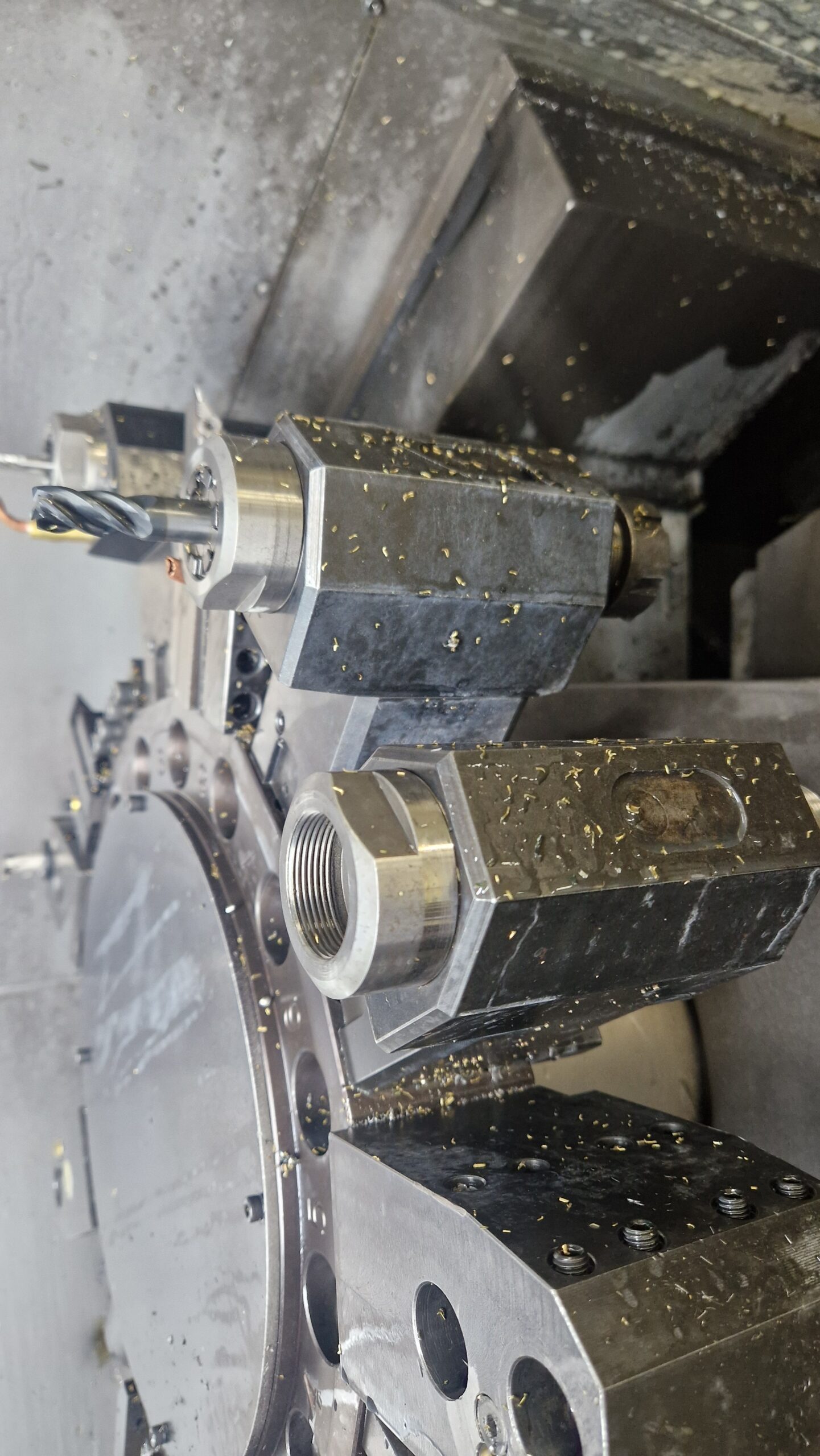

Tooling & Accessories

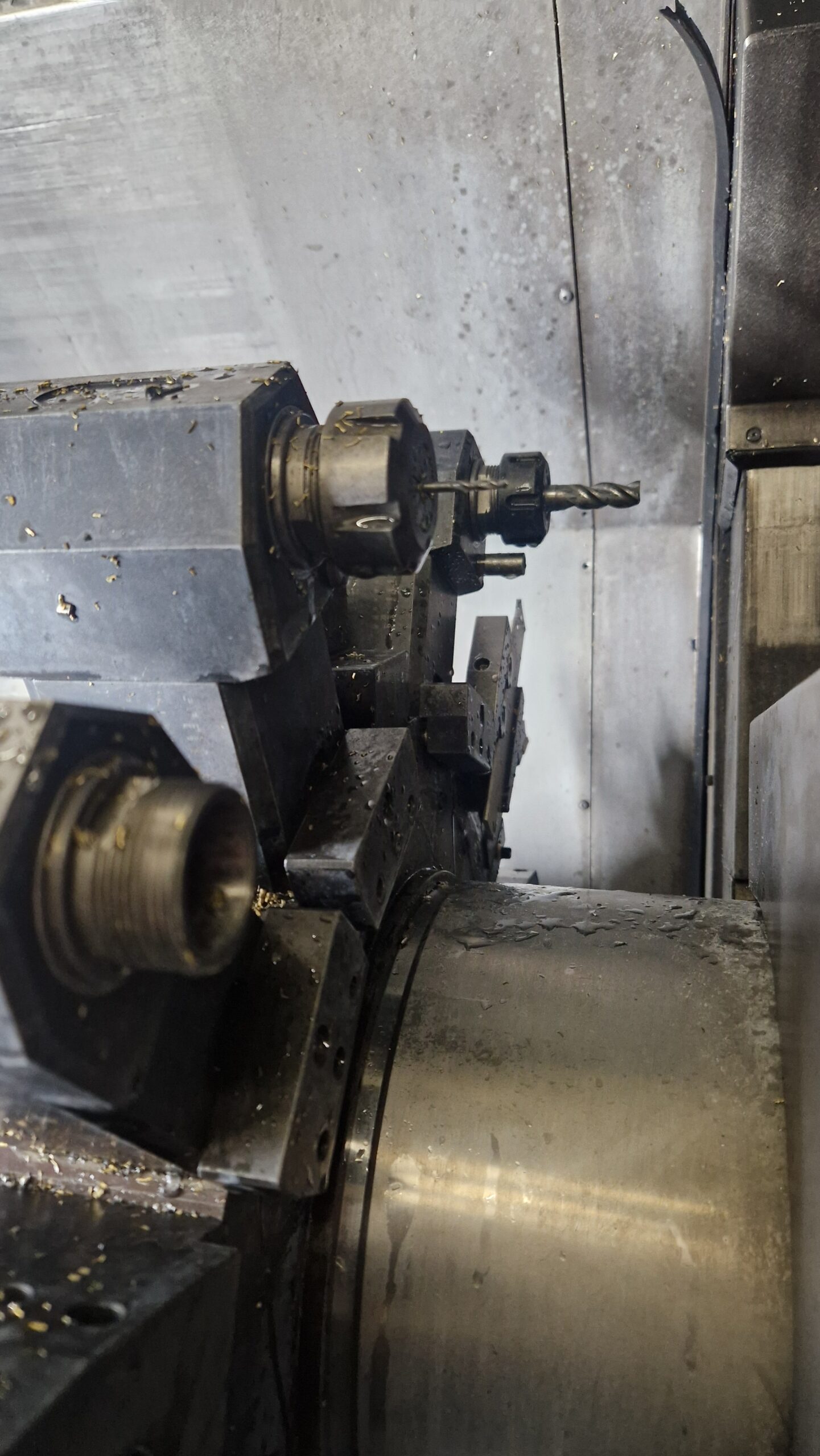

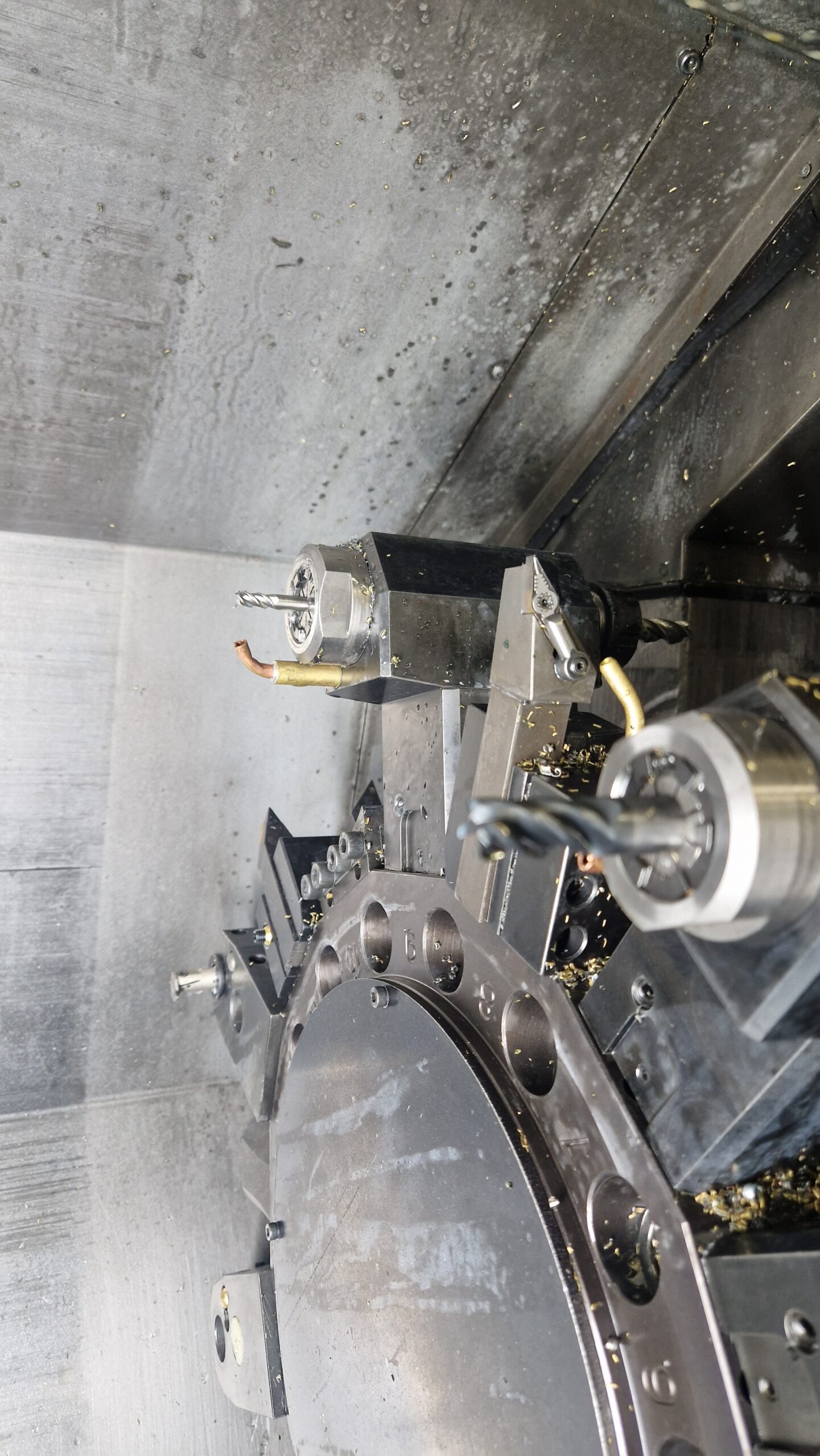

• Tool stations: 16 positions (VDI 30 DIN 69880 type adapters)

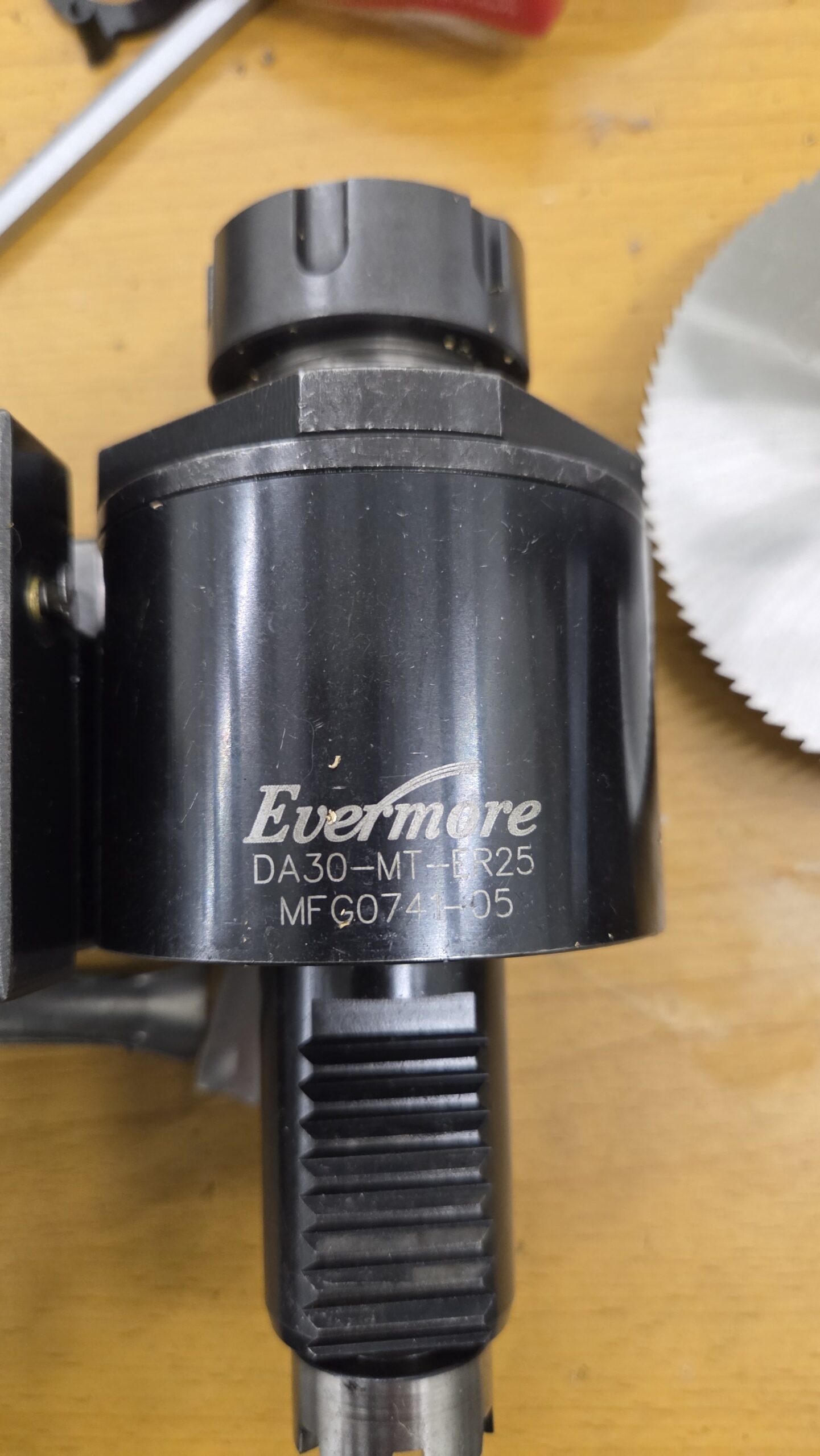

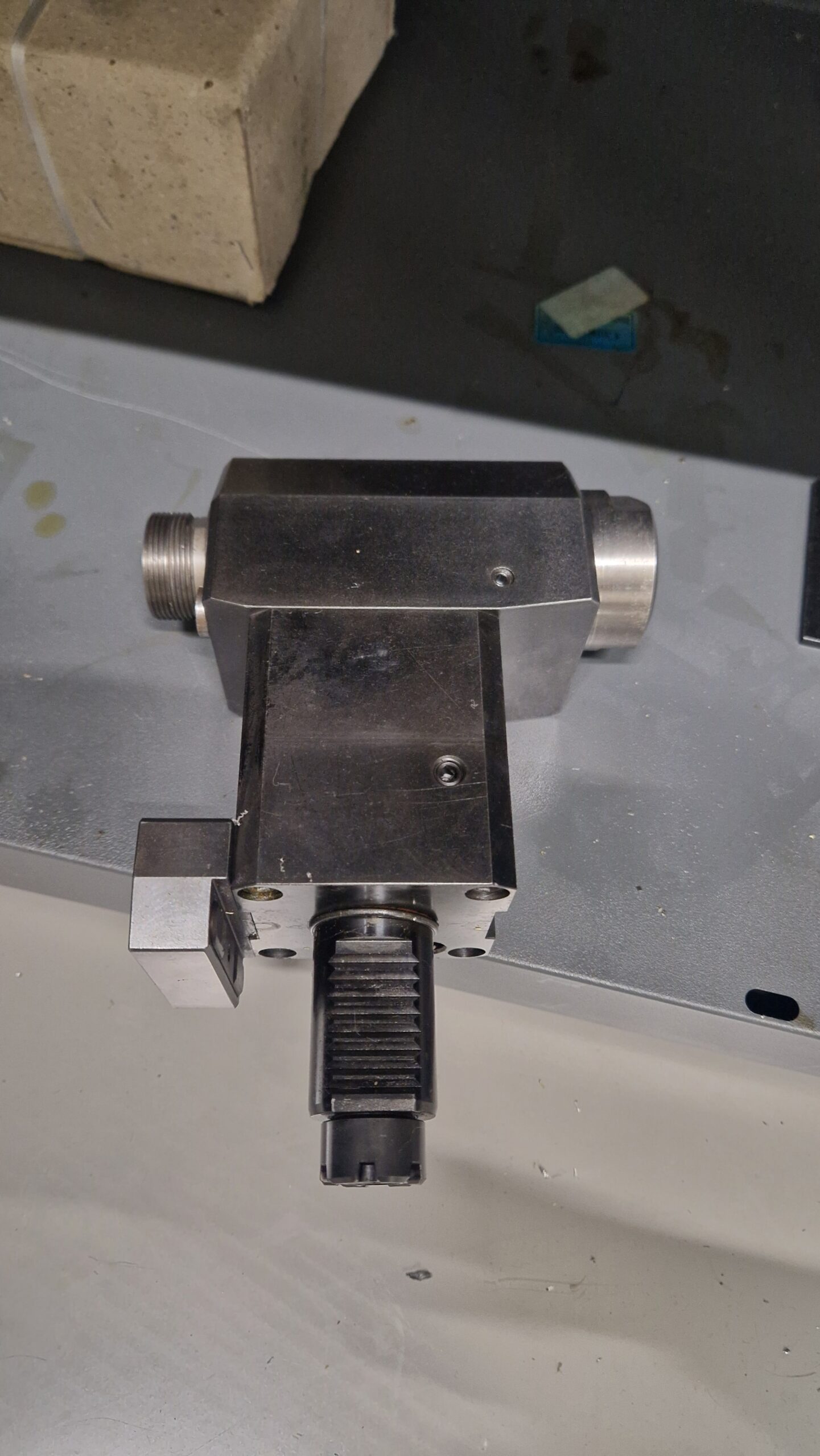

• Driven tool power: 2.3 / 3.5 kW (max. 3,000 rpm, torque 7 / 11 Nm)

• Included equipment:

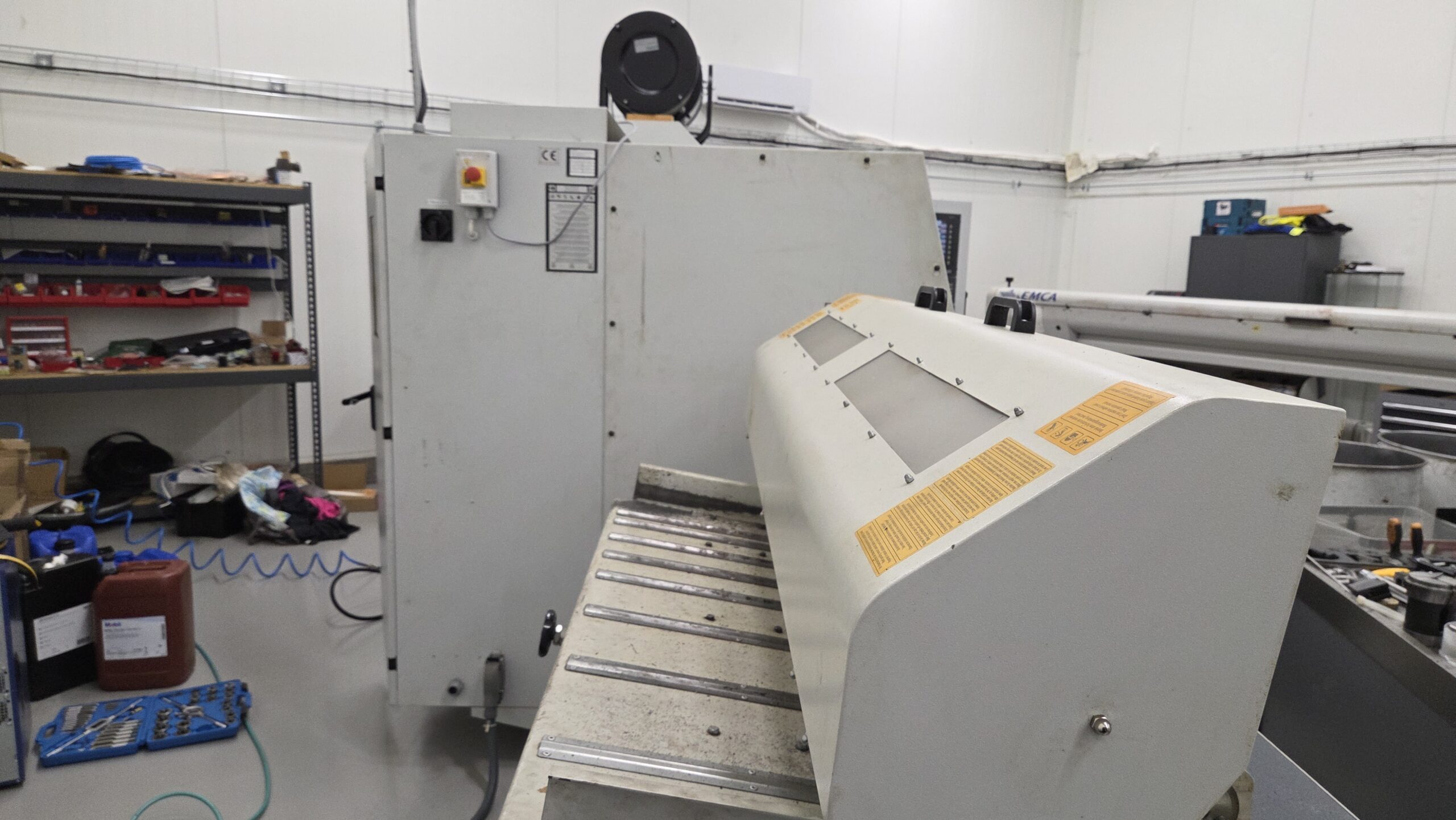

  • SPINNER ServoLoad 80‑1200 bar feeder

  • C-axis Y -axis

  • Coolant system

  • Chip conveyor

  • Tool setter, work light, signal tower, chuck jaws, and more depending on configuration

Physical Dimensions & Weight

• Weight: approx. 5.7 tons

• Dimensions: approx. 5.0 m × 2.3 m × 2.0 m (L × W × H)

Summary
The SPINNER TC 600‑65 SMCY is a high-precision CNC turning and milling center with Y-axis, sub-spindle, and C-axis capabilities. Equipped with a Siemens 840 DE control unit, it can handle parts up to 600 mm in diameter and 650 mm in length. With robust power on both spindles and a wide range of tooling options, it’s suitable for complex machining tasks.
