Nakamura Tome WT-250 CNC dreiebenk med C+Y aksel og stangmagasin

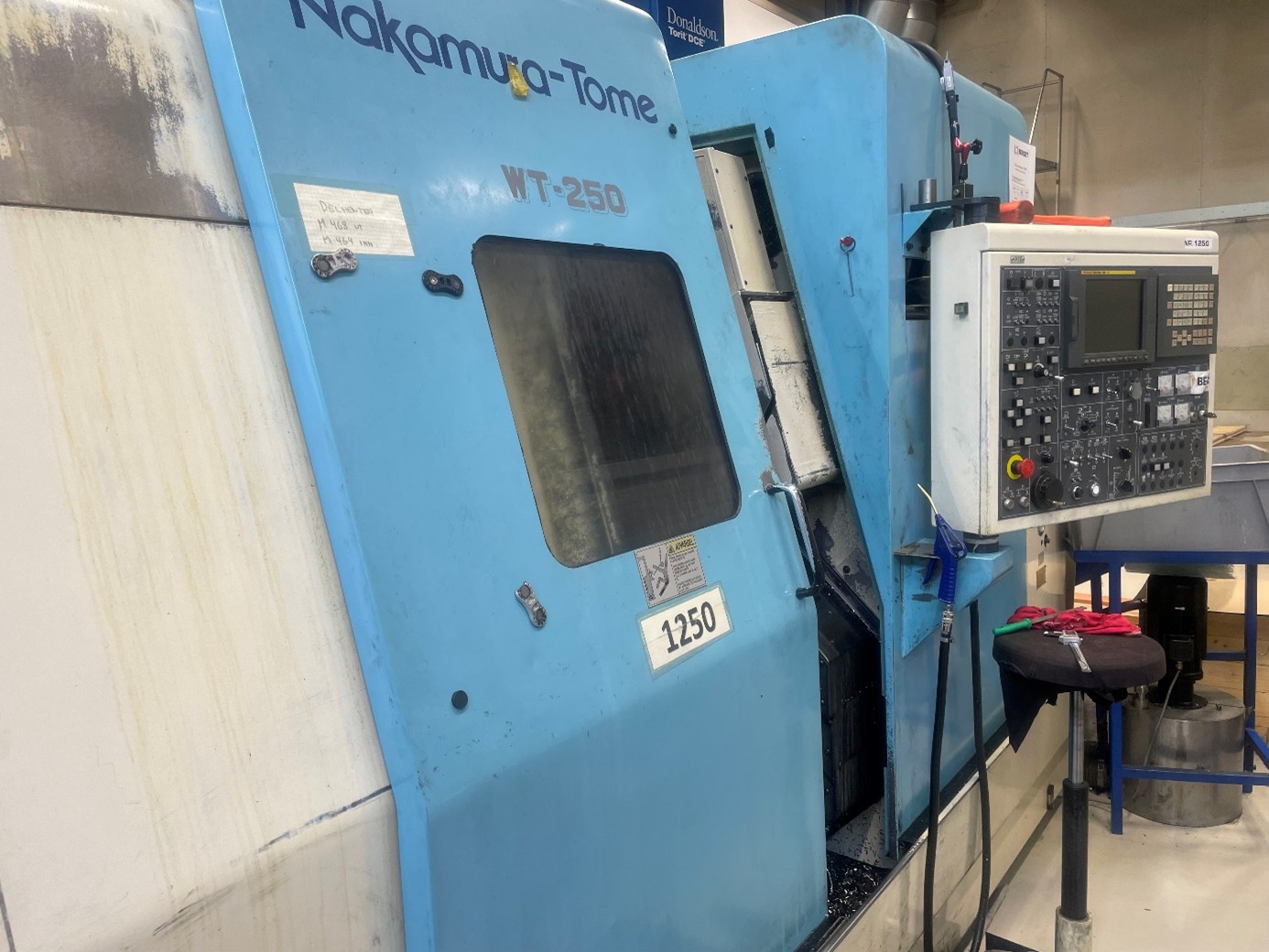

Nakamura-Tome WT-250 (2001)

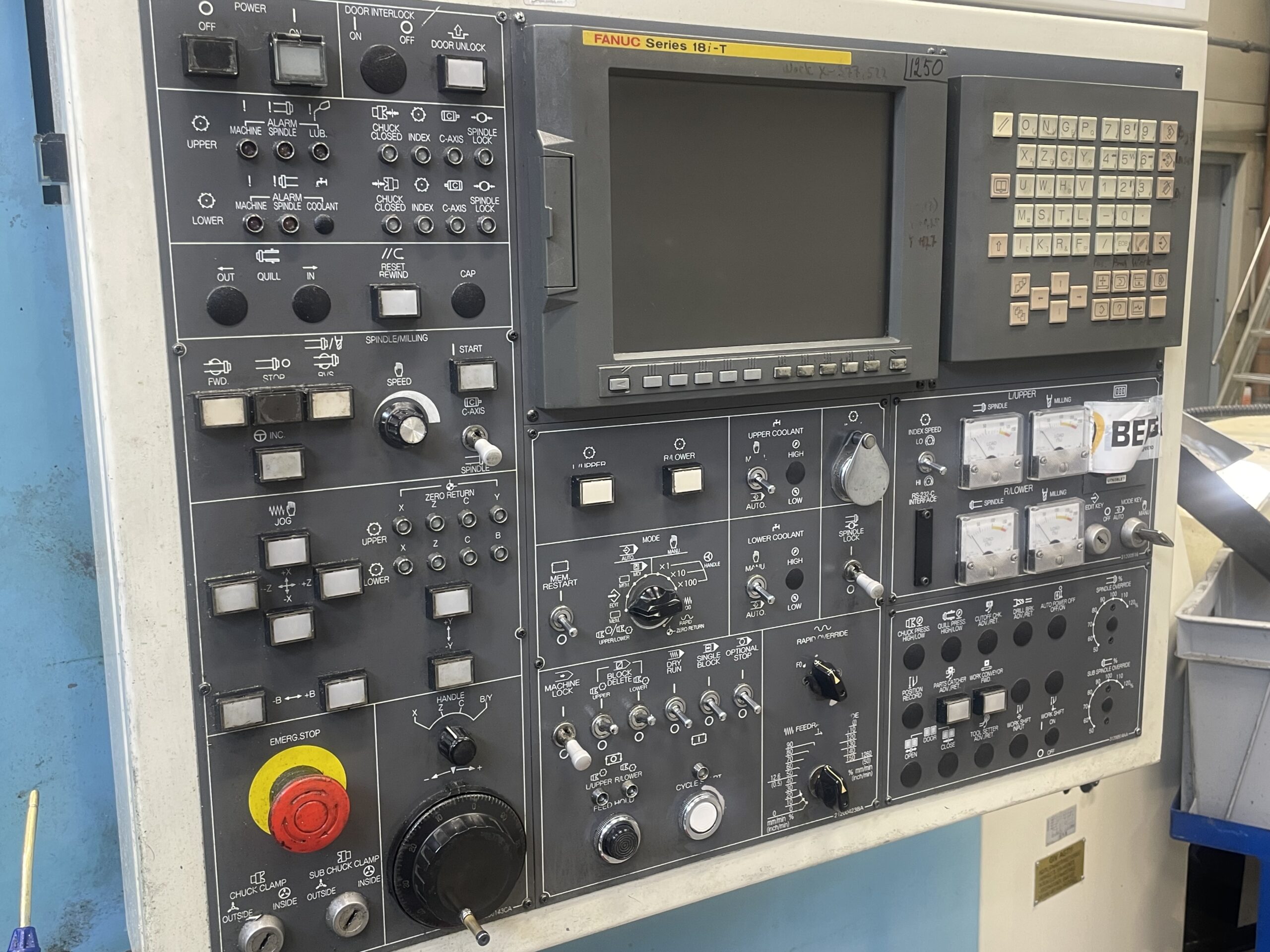

Control System: Fanuc 18i-T or equivalent CNC controller

Axes: 5-axis (X, Y, Z, C on both spindles)

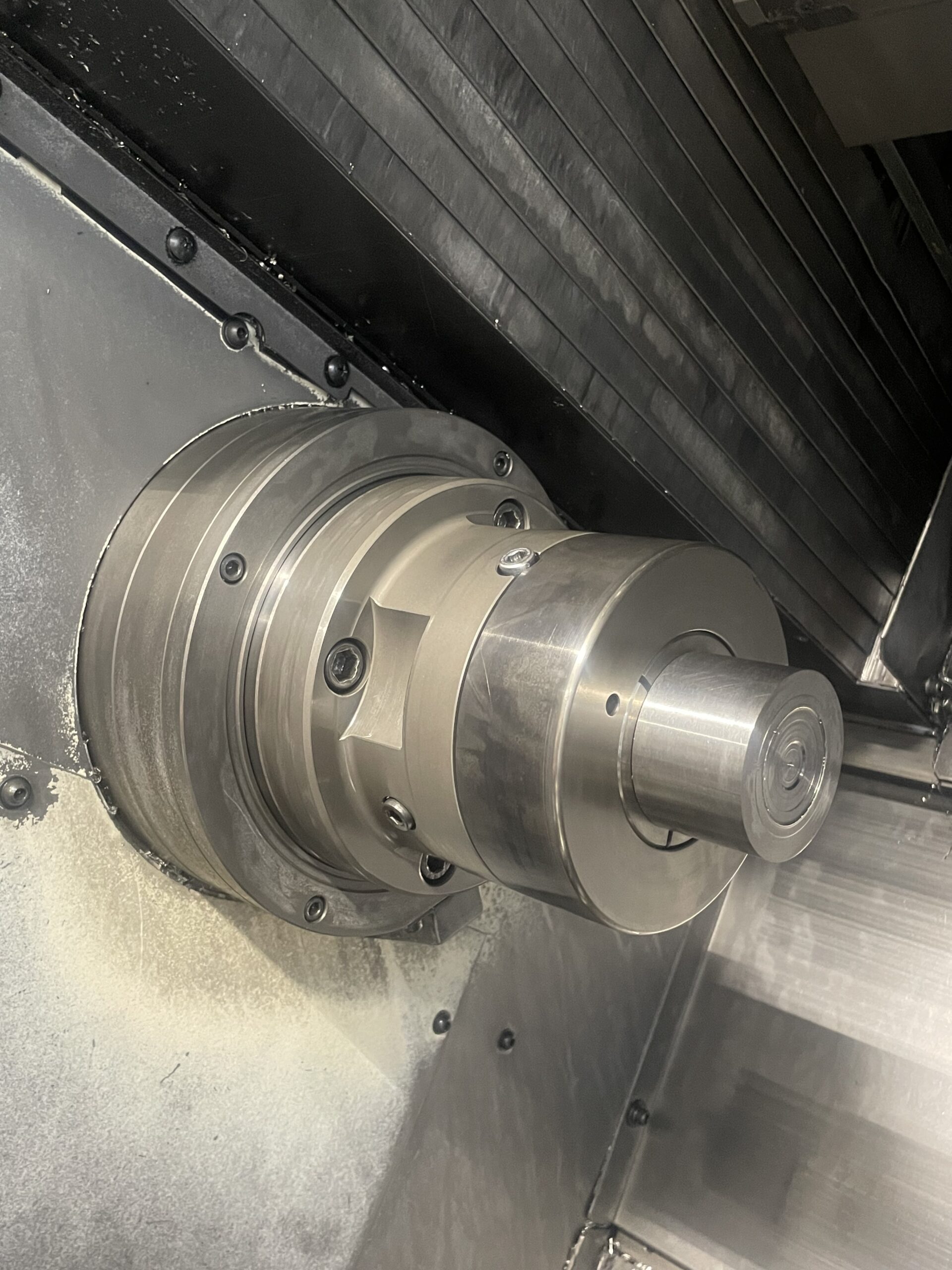

Main Spindle (Left):

Chuck Size: 8″ (203.2 mm)

Max Spindle Speed: 4,500 RPM

Spindle Motor Power: 18.5 kW (25 HP)

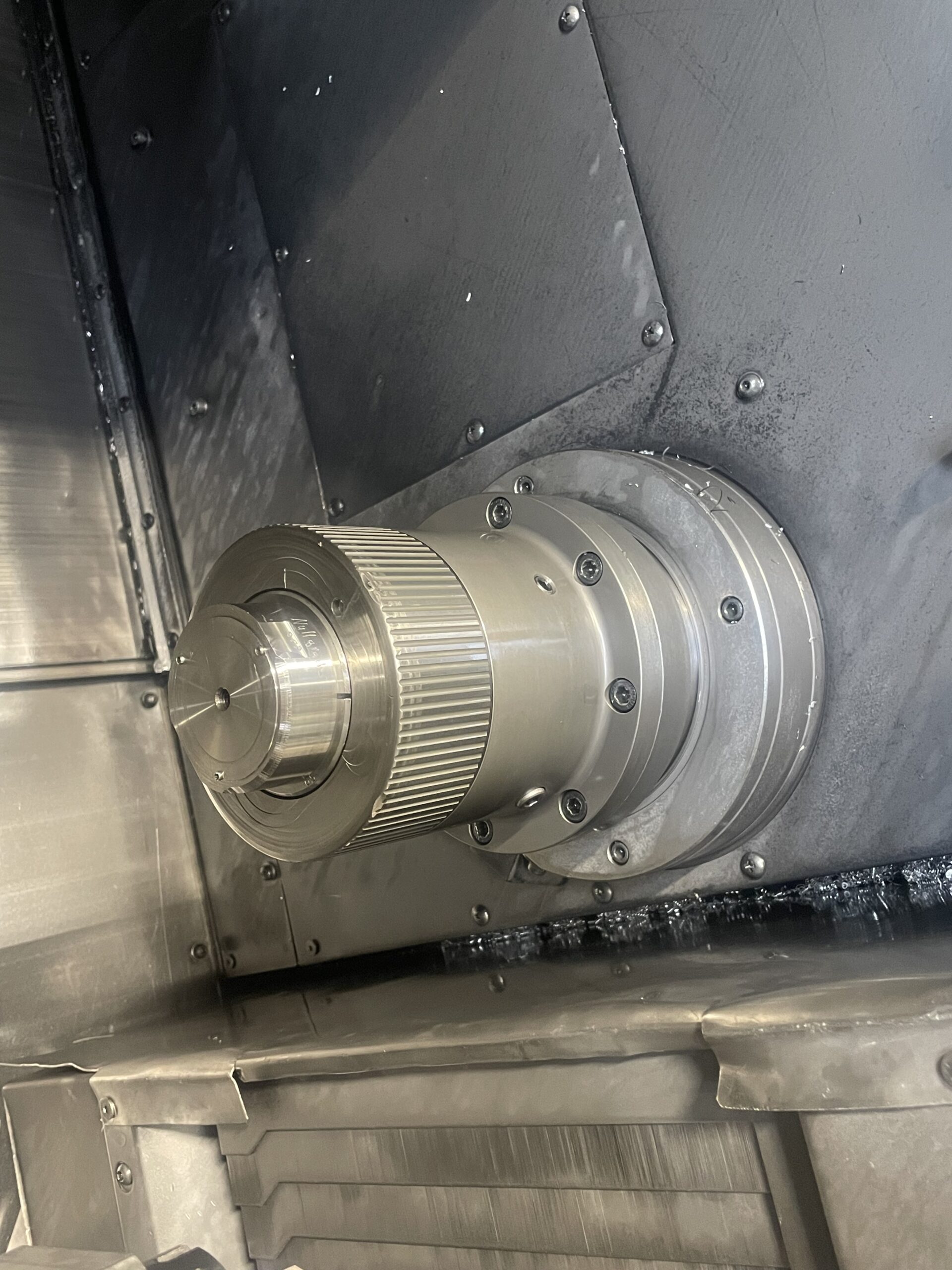

Sub Spindle (Right):

Chuck Size: 6″ (165 mm)

Max Spindle Speed: 5,000 RPM

Spindle Motor Power: 11 kW (15 HP)

Maximum Turning Diameter: 250 mm (9.8″)

Maximum Turning Length: 870 mm (34.3″)

Bar Capacity:

Main Spindle: 65 mm

Sub Spindle: 51 mm

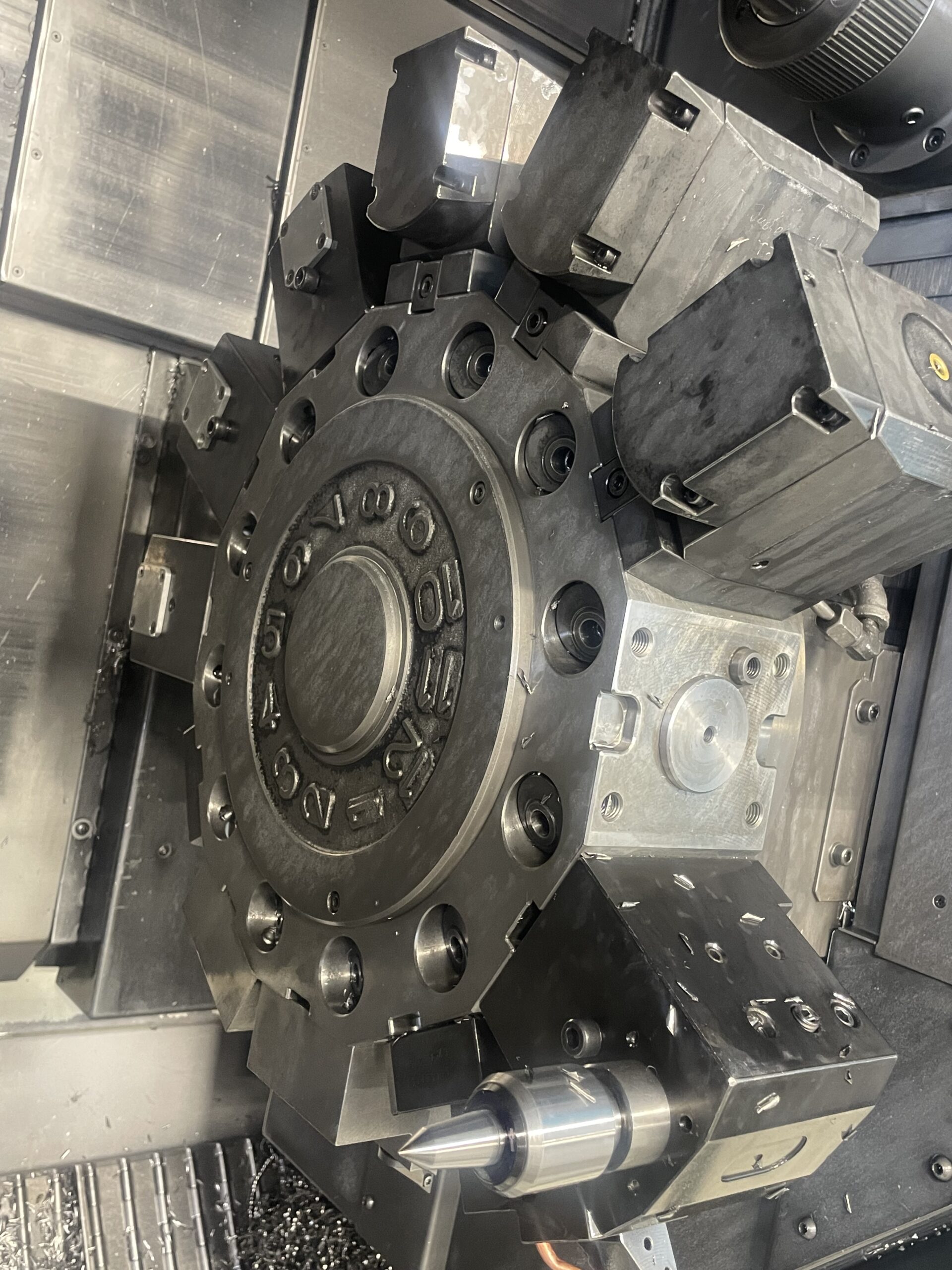

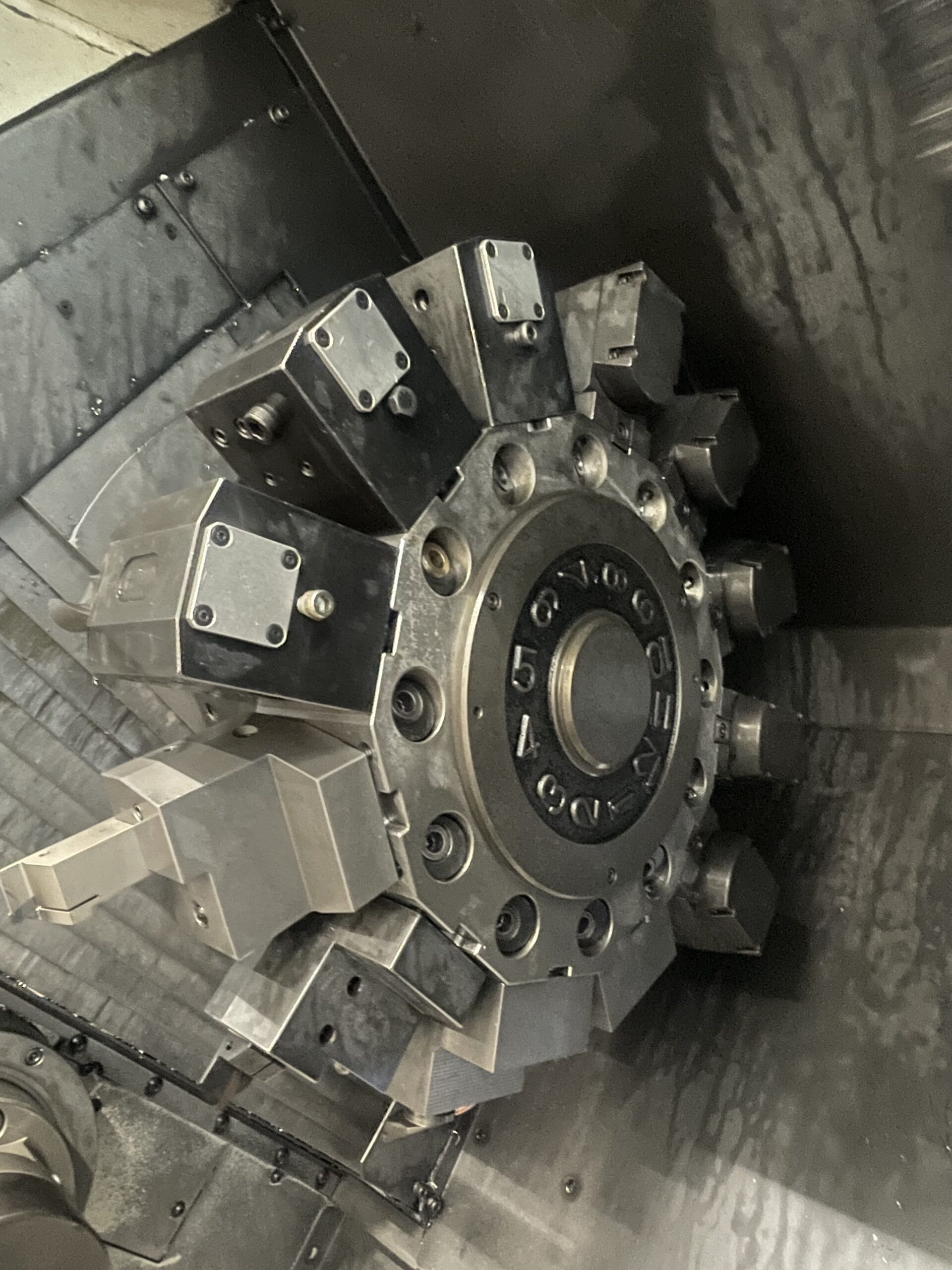

Turret: Twin turrets, each with 12 tool stations (24 total)

Y-axis Travel: ±41 mm (optional)

C-axis: Full 360° indexing with 0.001° accuracy on both spindles

Fedmbjw I Dduslxx Iegf
Rapid Traverse Speeds:

X-axis: 12 m/min (472 in/min)

Z-axis: 24 m/min (945 in/min)

Machine Dimensions: Approx. 3.5 m (W) × 2.3 m (D) × 2.0 m (H)

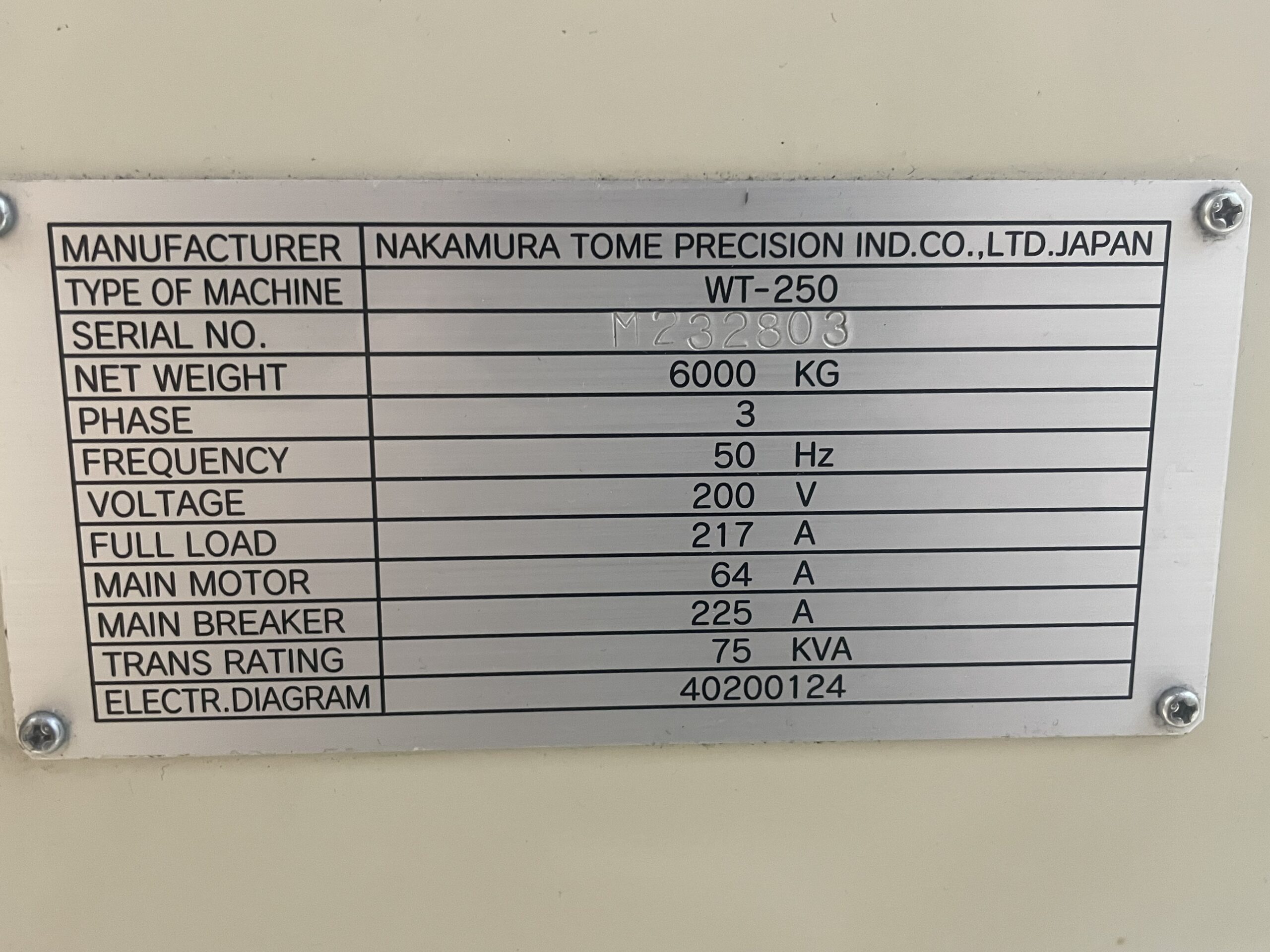

Machine Weight: Approx. 6,000 kg (13,230 lbs)

Additional Features:

Integrated coolant system and automatic chip conveyor

Automatic parts catcher

Optional bar feeder interface

BMT-55 style tool holders for square and round tools

Fanuc 18i-T CNC control
