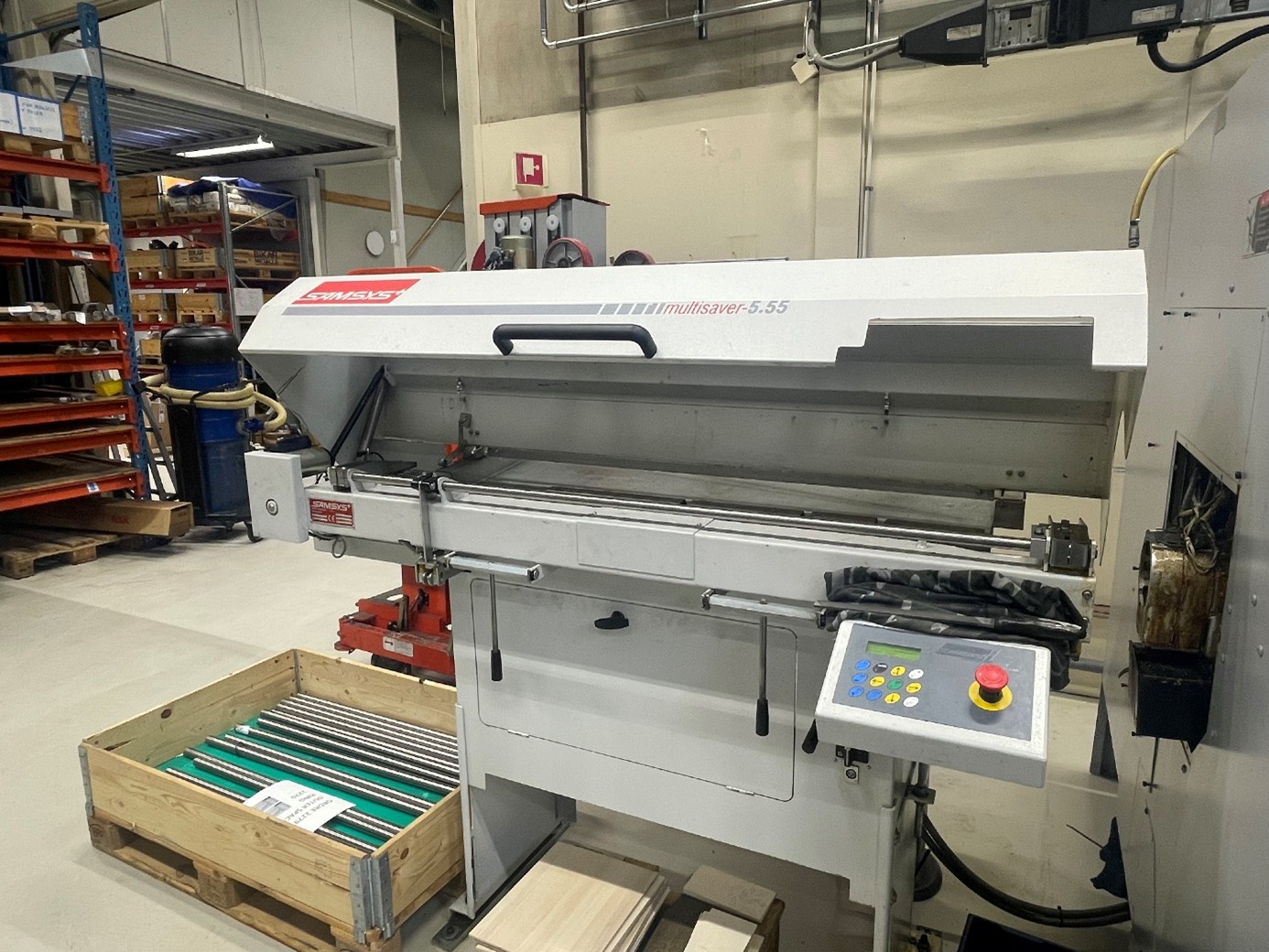

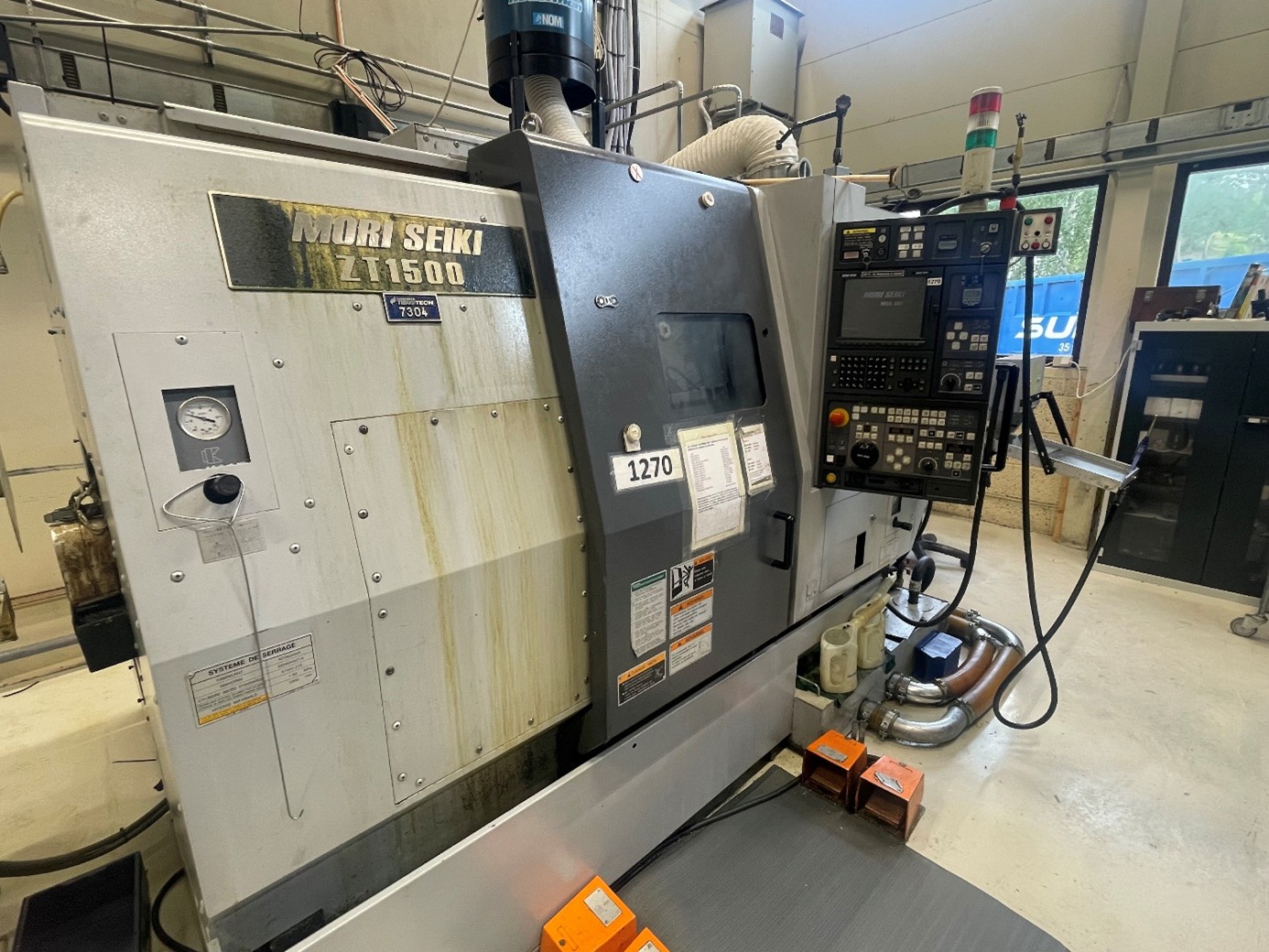

Mori Seiki ZT 1500 Y CNC Dreiebenk med C+Y aksel og stangmagasin

General Features

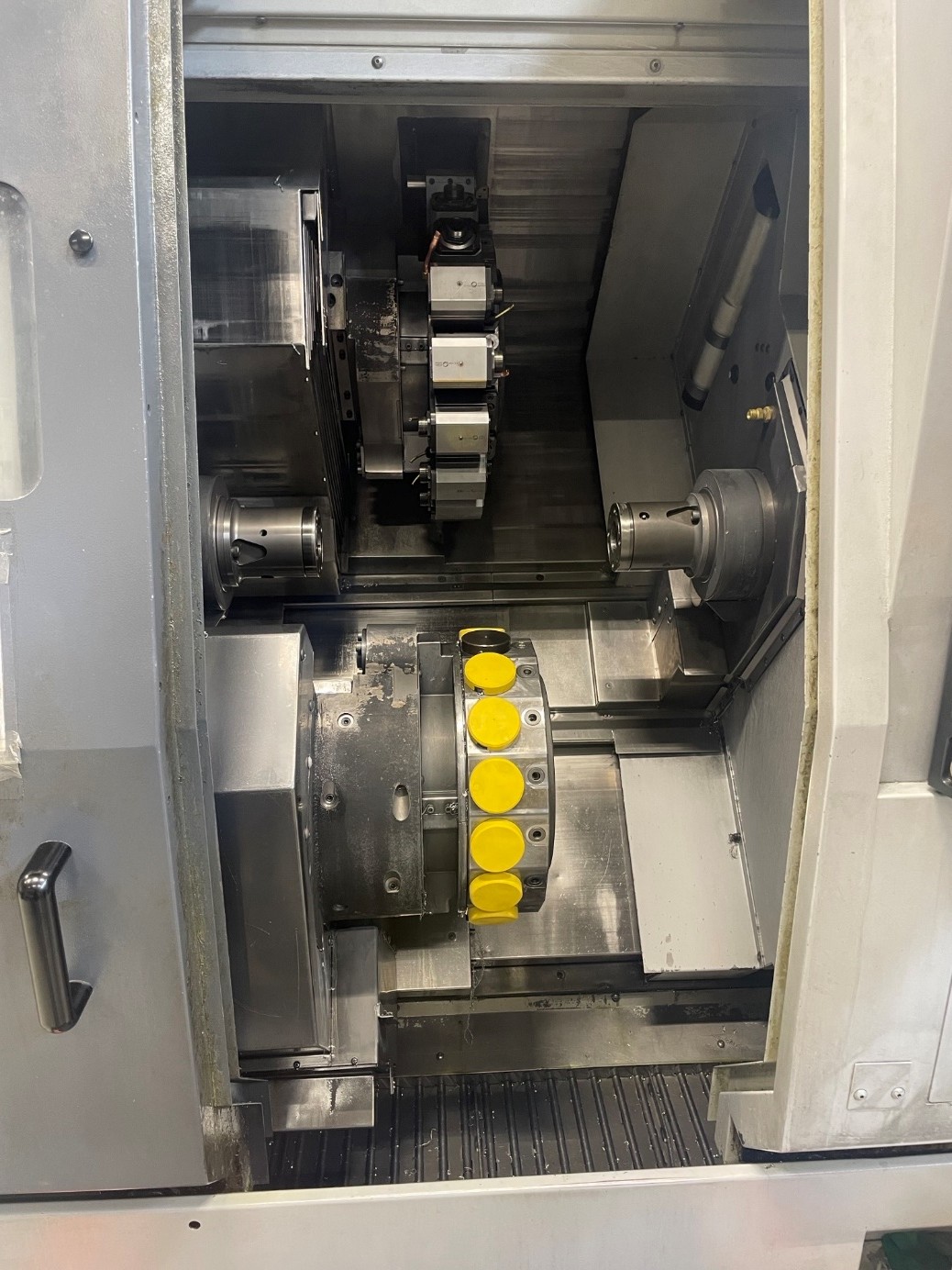

Twin-spindle, twin-turret multitasking CNC lathe with Y-axis and full C-axis capabilities (0.001°)

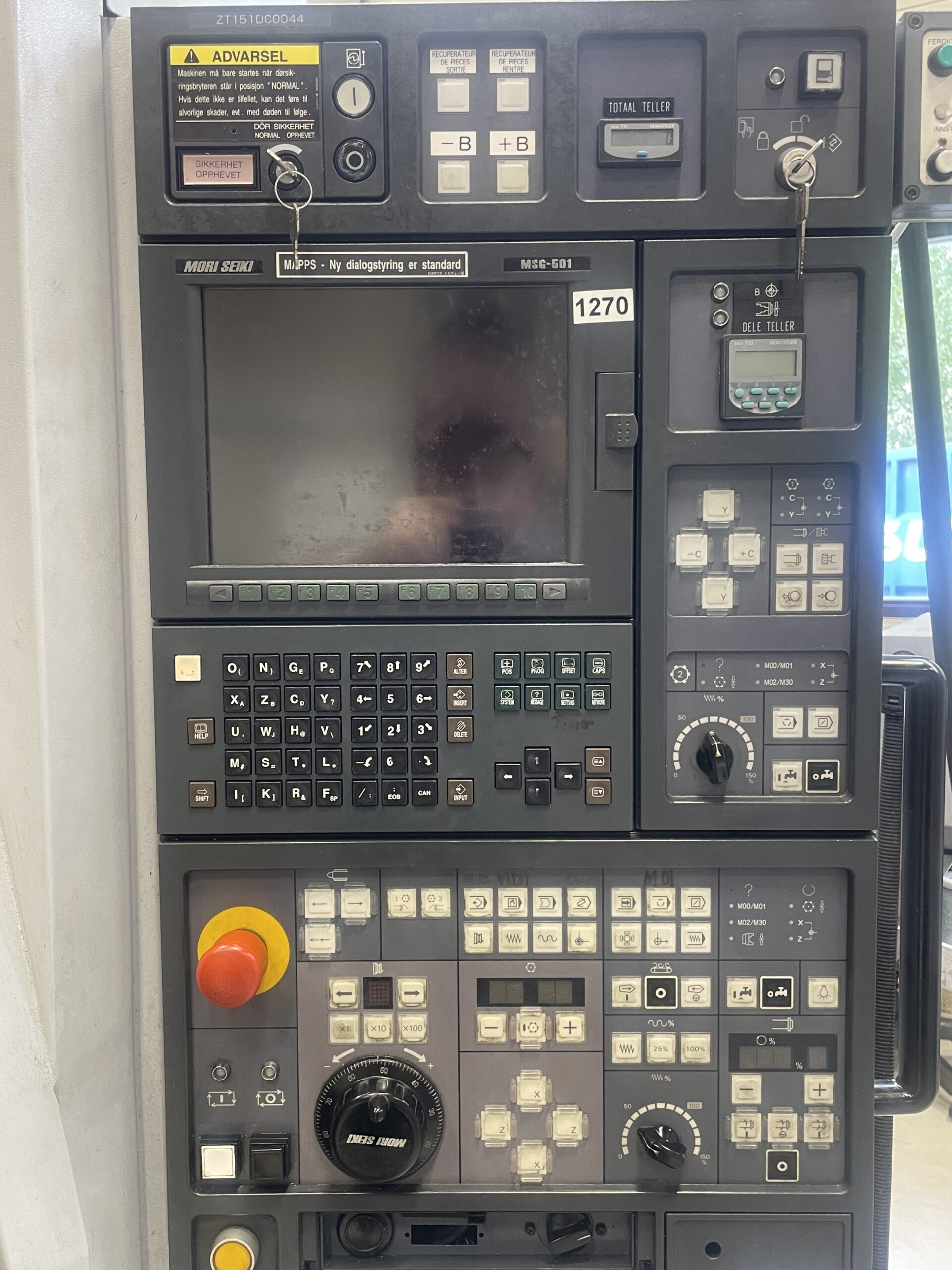

Control: Fanuc-based MSG-501

Accessories typically include coolant tank, chip conveyor, bar feeder interface, parts catcher/conveyor, tool presetter, and Ethernet connectivity
Spindle & Turning Specifications

Main and sub-spindle: both ~6 » Kitagawa BB206 (dual 6″) chucks.

Bar capacity: ~2″ on main, ~2.5″ on sub-spindle
Maximum turning diameter: approx. 7.5″ (7.4″) with a swing over bed of about 9.8″–15″ depending on orientation
Distance between centers: ~29–29.5″

Spindle speeds: up to 6,000 RPM

Spindle power: Main: ~25–30 HP (approx. 22 kW); Sub: ~22–25 HP

Turrets and Tooling

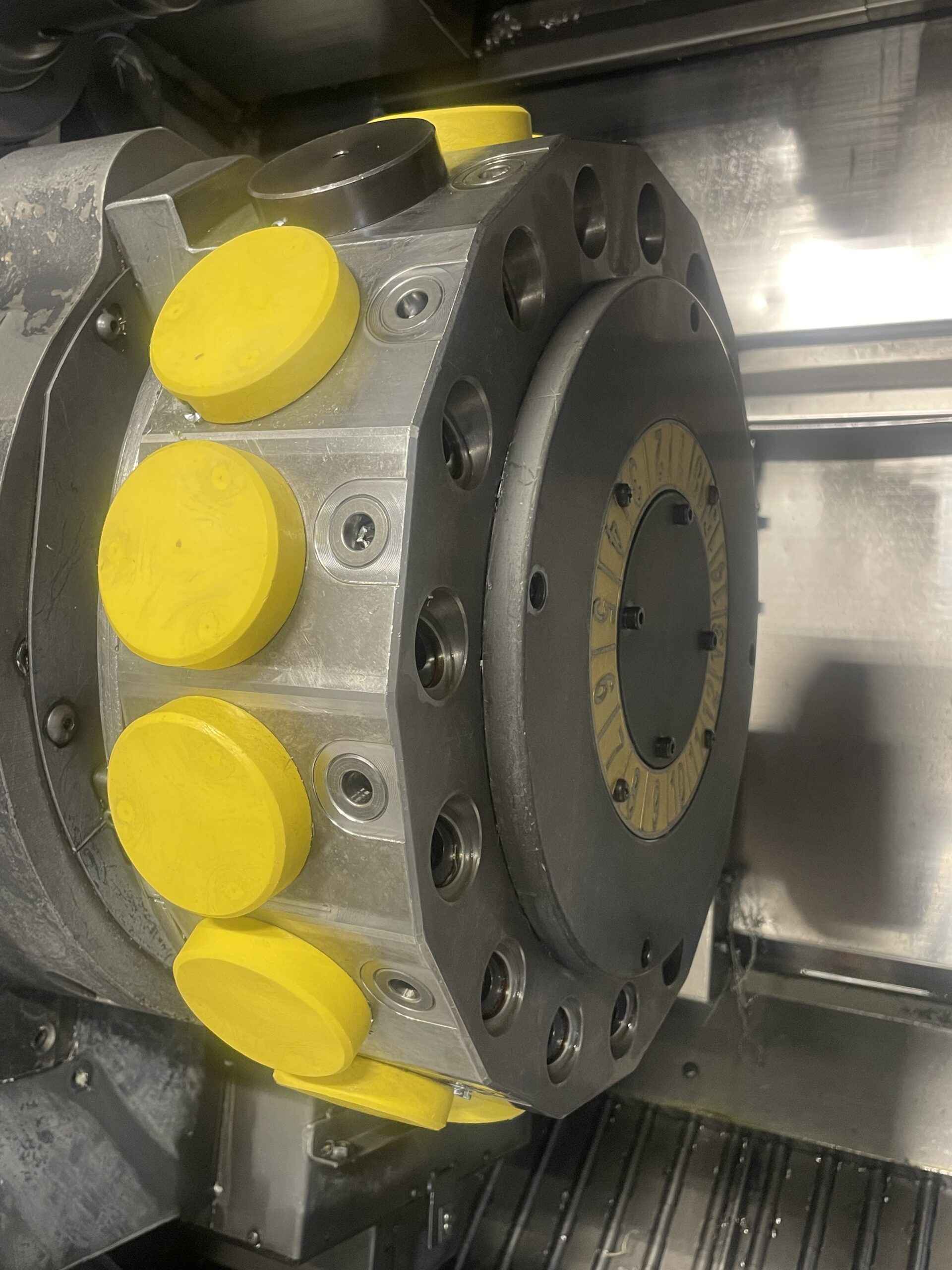

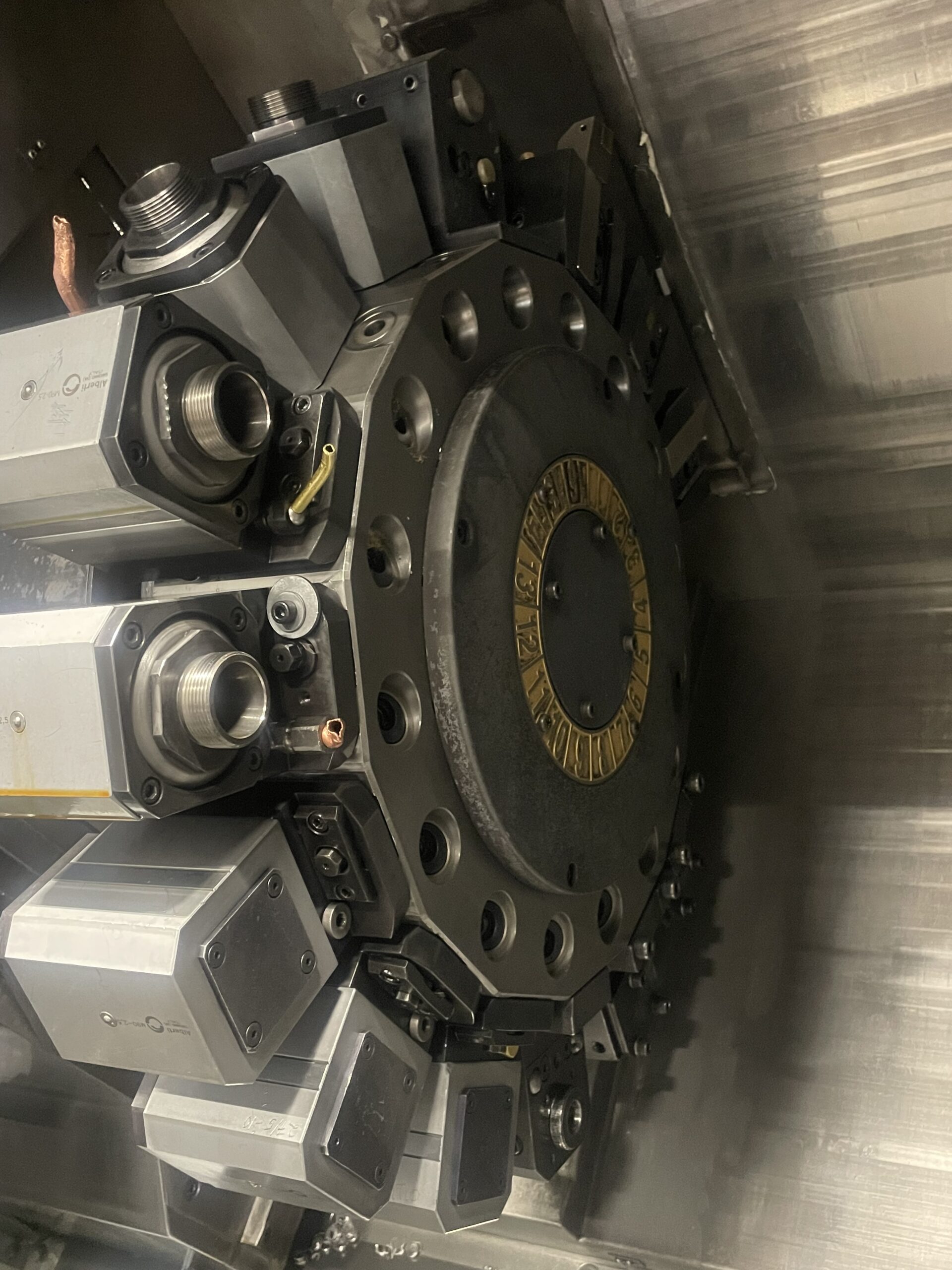

Two turrets (upper and lower), each with 16 stations and live tooling (VDI 30), 6,000 RPM capability

Y-axis on upper turret, C-axis on both spindles; driven tooling configurations allow complex machining paths
Axis Travels & Speed
C axis 0,001
X-axis travel: ~5.5″ upper and lower
Y-axis travel: ±1.5″ (≈±40 mm)
Z-axis travel: ~17″ (≈690–700 mm)
Physical Dimensions & Weight
Fgedmjw I Dbtjblxx Ijf

Approximate footprint: 140″ × 81″ × 79″ (≈3.7 m × 2.1 m × 2.0 m)

Weight: ~6.6–12,000 lbs (≈6.6 t to ~5,400 kg)
