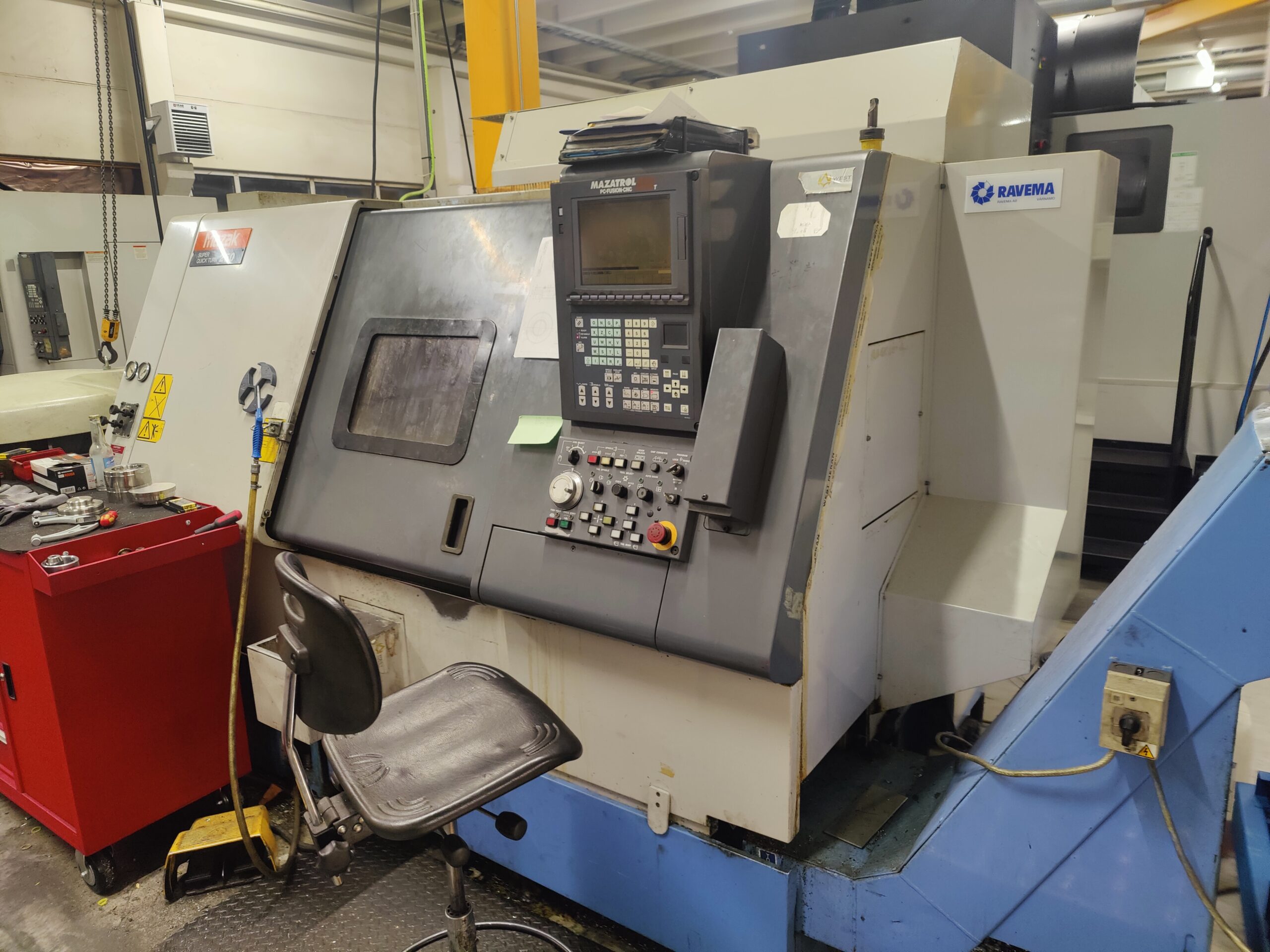

MAZAK CNC DREIBENK
Mazak SQT 250 CNC dreiebenk MAZAK CNC Dreiebenk - Bilde 2
Mazak SQT 250 CNC dreiebenk MAZAK CNC Dreiebenk - Bilde 3
CNC MAZAK dreiebenk cnc maskin
Mazak SQT 250 CNC dreiebenk MAZAK CNC Dreiebenk - Bilde 5

Mazak SQT 250 CNC dreiebenk MAZAK CNC Dreiebenk

Produktinformation

Turning length:
550 mm
Turning diameter:
300 mm
Spindle motor power:
22,000 W
Rotational speed (max.):
4,000 rpm
Machine type:
CNC turn-mill center
Manufacturer:
MAZAK
Model:
SQT 250
Turning range
Turning diameter (max.): 300 mm
Turning length (max.): approx. 550 mm
Standard turning diameter: 276 mm
Turning diameter (max.): 525 mm
Distance spindle nose – turret face: 115 – 690 mm

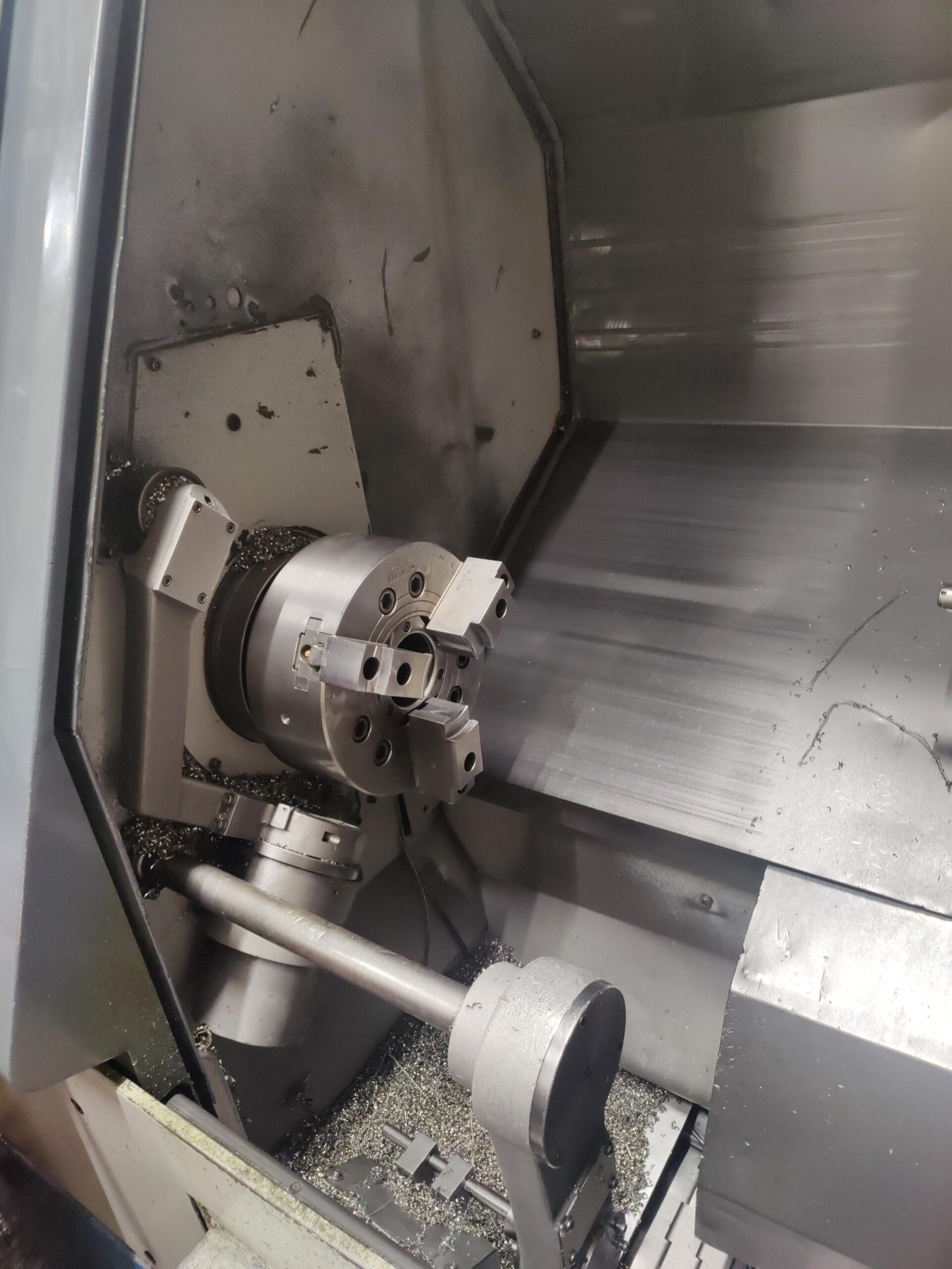

Main spindle
Speed range: 35 – 4,000 min-¹
Drive power: 22 kW
Max. Torque: 351 Nm
Spindle nose: A2-6″
Spindle bore: 76 mm
Max. usable bar diameter: 64 mm
Chuck diameter (max.): 250 mm

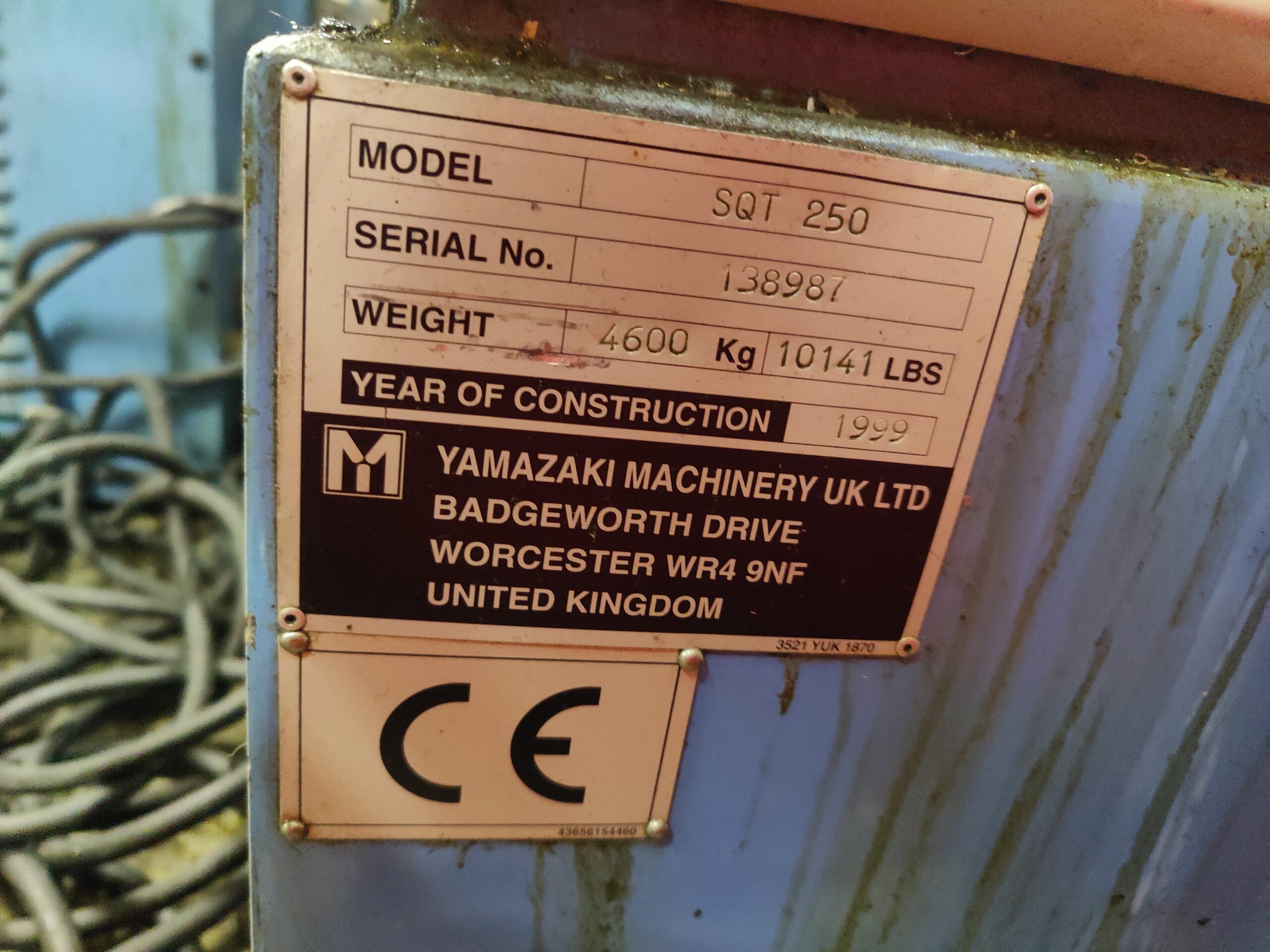

Yom 1999 Working condition.
