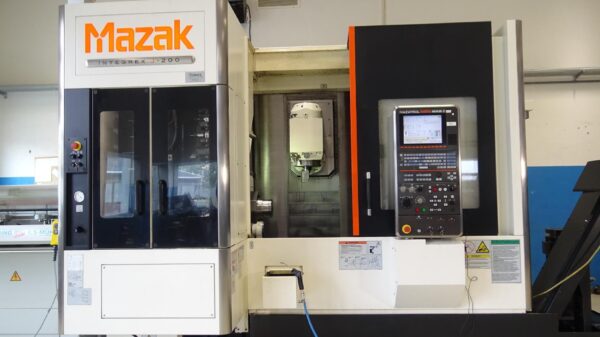

MAZAK INTEGREX J200 CNC Dreiebenk

MAIN INFORMATION

Capacity and Working Area
• Model: Mazak Integrex J-200 500U
• Control: Mazatrol Matrix Nexus 2
• Year: 2014-05
• Serial No.: 255239
• Cutting time: 8,867 hours
• Network: LAN connection
• Condition: The machine is in very good technical condition with extremely high precision.
• Max. turning diameter: 530 mm
• Max. turning length: 500 mm
• Bar capacity: 65 mm
• Spindle bore: 76 mm

Axis Travels
• X-axis: 450 mm
• Y-axis: 200 mm
• Z-axis: 550 mm

Spindles and Axes

Main Spindle
• Speed: 5,000 rpm
• Power: 15 kW (increased power)
• C-axis: 360° with 0.001° indexing

Milling Spindle
• Speed: 12,000 rpm
• Tool holder: Capto C6
• Through-spindle coolant (liquid/air)

B-axis
• Angular range: -30° to -190°
• Full indexing

Tooling, Magazine and Additional Equipment
• Tool magazine: 72 positions
• Tailstock: MT5 Auto
• Chuck: Hainbuch Ø65 collet chuck
• Tool measurement: Yes (measuring arm)
• Parts catcher: Yes
• Chip conveyor: Mayfran
• High-pressure pump: 15 bar
• Bar feeder: Irco ILS-MUK-7012

Machine Condition and History
• The machine is fully operational and functions as it should.
• No alarms or critical faults.
• Smooth movement on all axes.
• Spindles run smoothly without vibration.
• Linear guides and ball screws are in good condition.
• Hydraulic and pneumatic systems operate normally.
• Regular in-house servicing.
• Lubrication system OK.
• The machine is clean and well maintained.

Included Documentation
• Photos of the machine
• Video of the machine in operation
• Screenshot of service history
• Electrical diagrams on CD
• Manuals on CD

Machine Strengths
• Multitasking machine with both turning and milling capabilities
• Full 5-axis interpolation (C + B)
• Capto C6 milling spindle with 12,000 rpm
• Large machining capacity: 530 mm diameter / 500 mm length
• 72 tool positions – rare and highly attractive
• Through-spindle coolant (liquid/air)
• Integrated robot interface (Smartshift BASE)
• Irco bar feeder
• Hainbuch collet chuck
