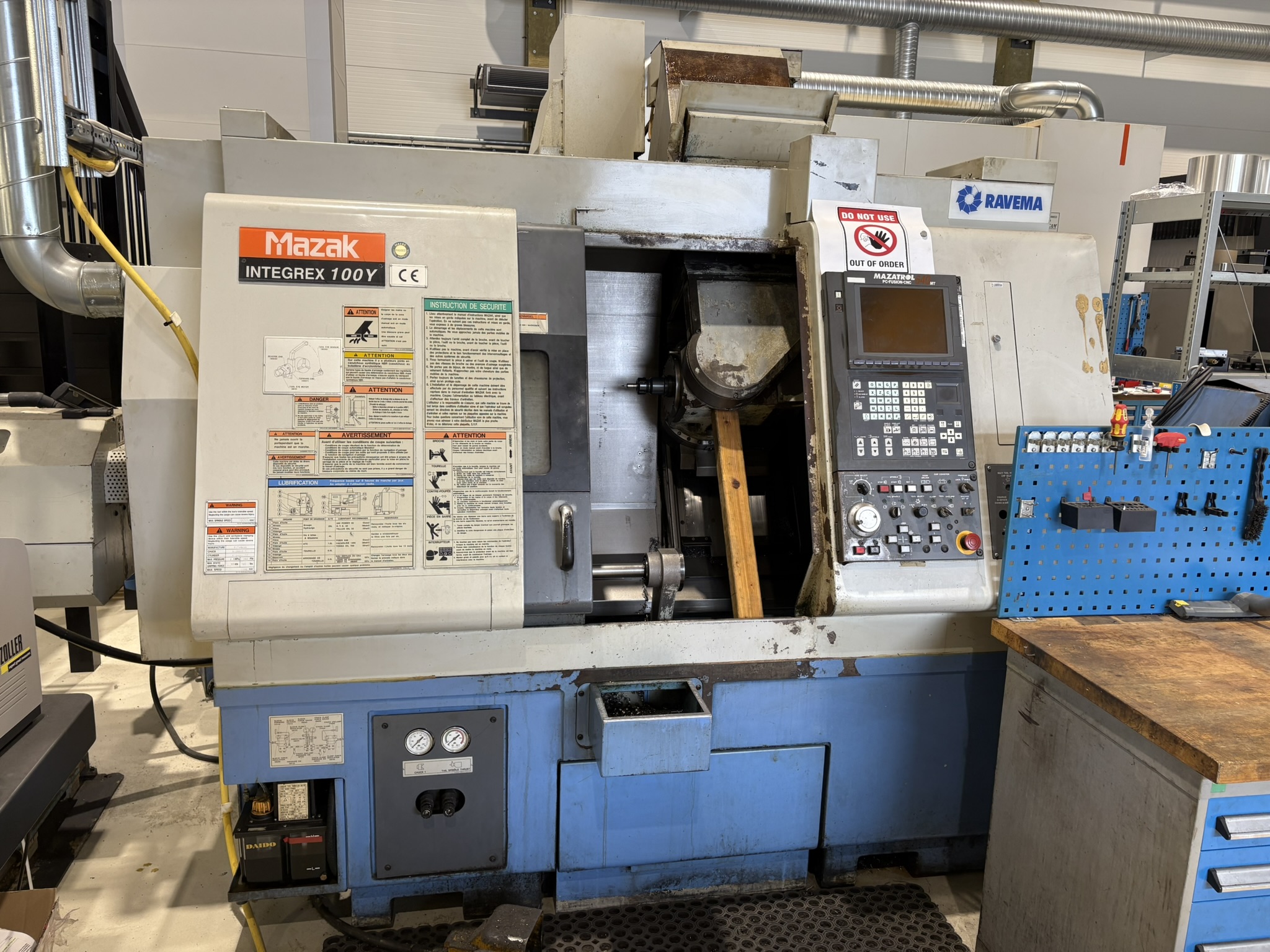

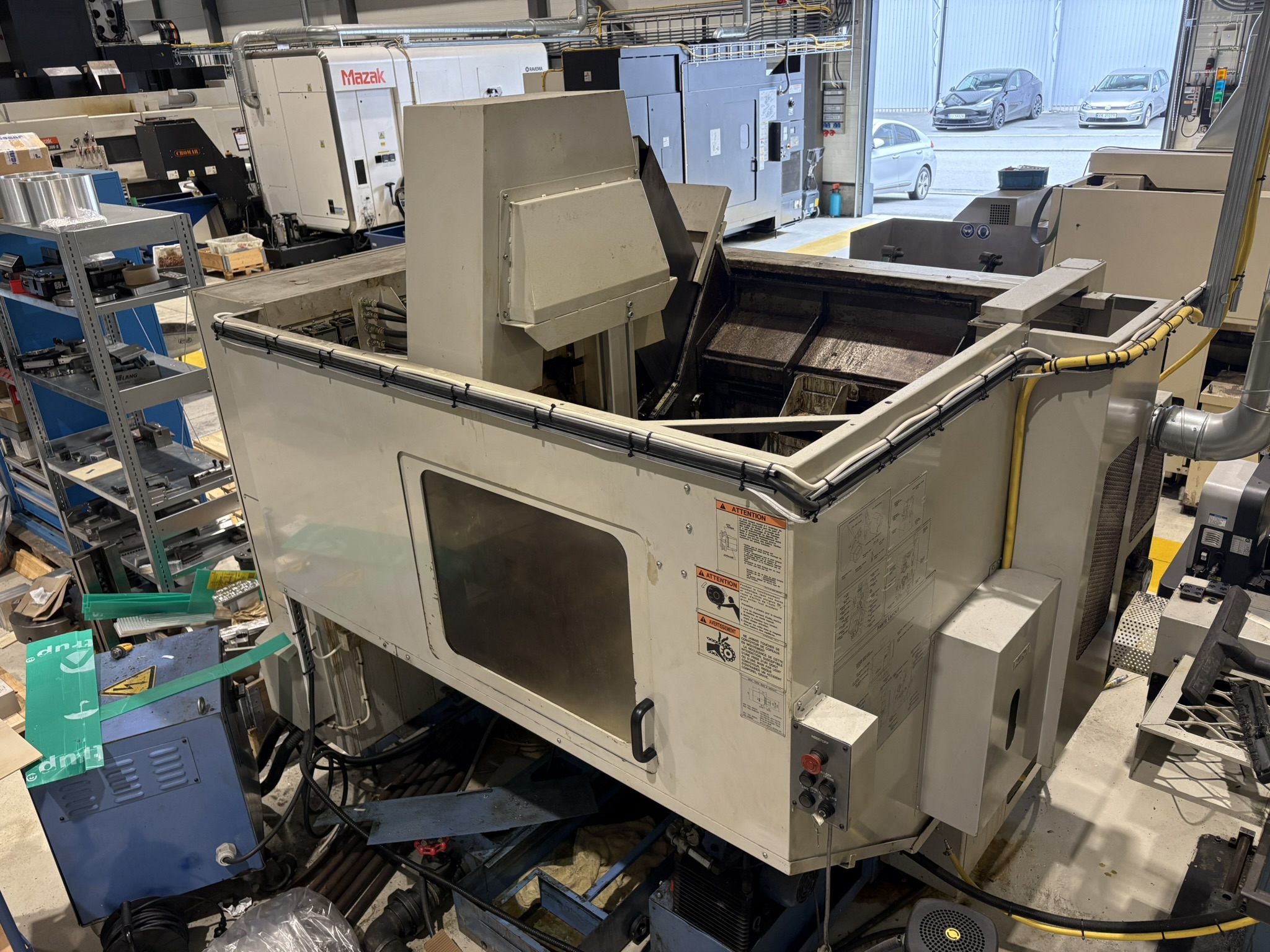

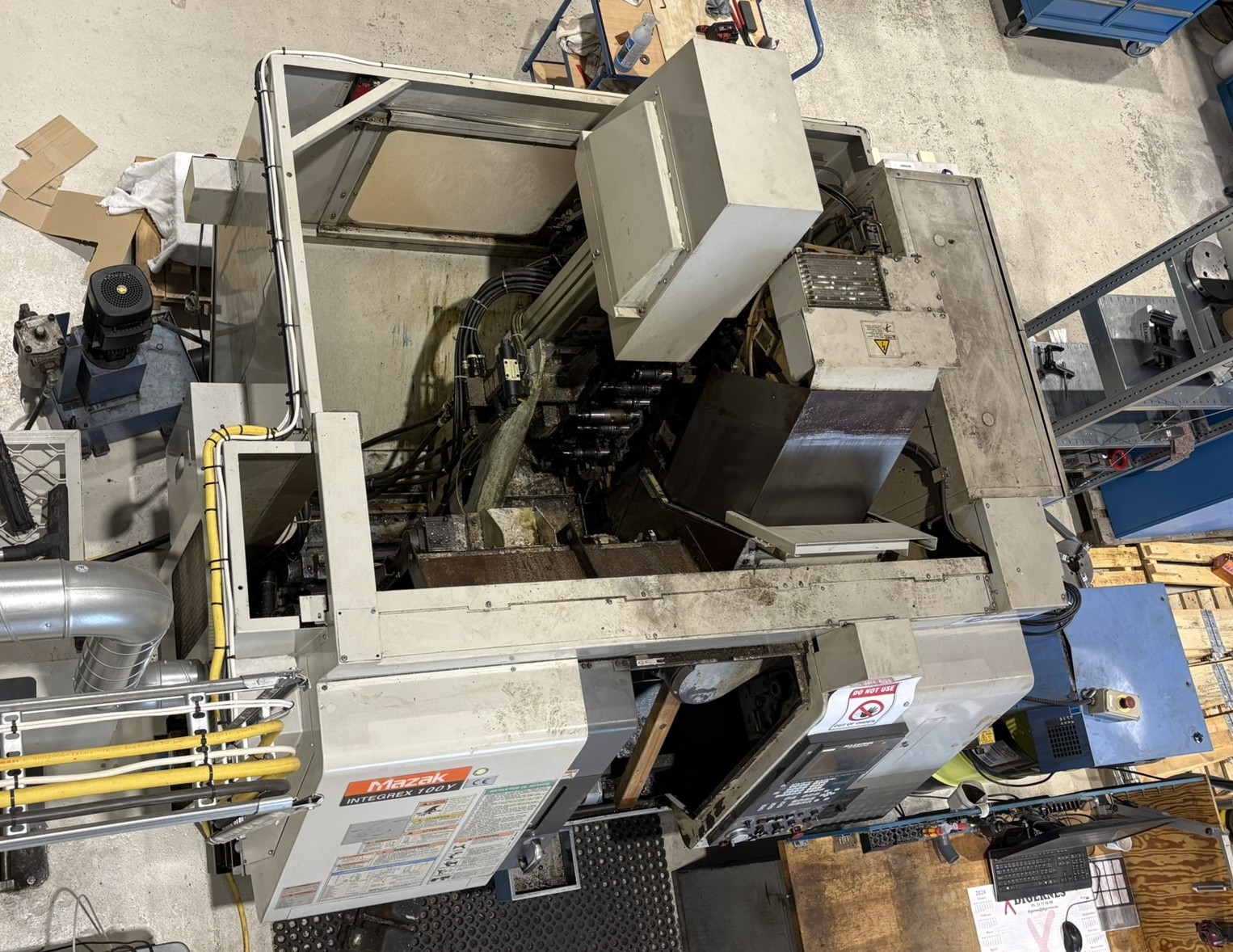

Mazak IG 100Y med stangmagasin CNC dreiebenk

Control System: Mazatrol
Chuck Size: 6 inches
Max Machining Diameter: Φ600 mm
Max Machining Length: 850 mm
Y-Axis Travel: 210 mm
Prsbm Ipow Tl Ryohmdea
Spindle Speed: Up to 12,000 rpm
Spindle Motor Power: 7.5 kW
Tool Capacity: 40 tools
Live Tooling Speed: 12,000 rpm
Rapid Traverse Rates:
X-Axis: 1,181 ipm
Y-Axis: 1,024 ipm
Z-Axis: 1,299 ipm
C-Axis Indexing: 0.0001° increments
Machine Dimensions: Approximately 3,073 mm x 2,134 mm x 2,413 mm
Weight: Approximately 7,500 kg
Bar feeder
Condition / Faults:
X-Axis Brake Defective
Turret Control and/or Bearings Defective
Note: Sold as-is / with faults.
