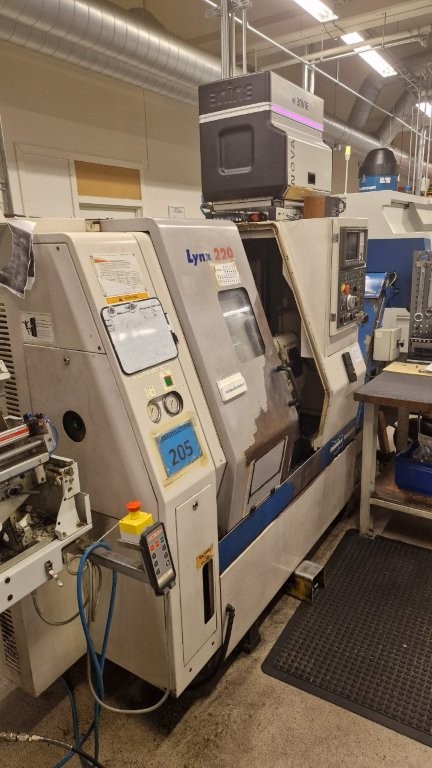

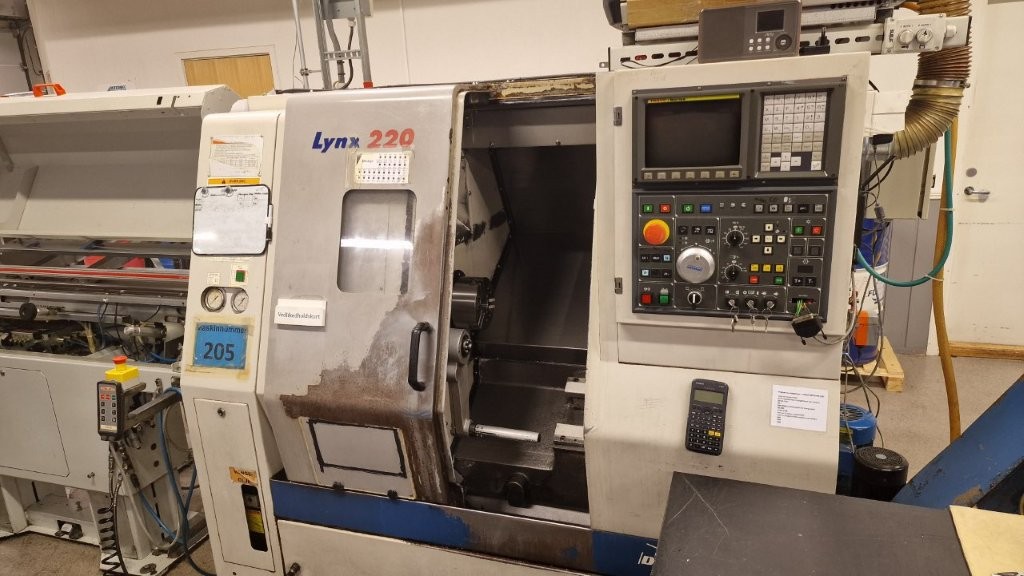

Doosan Lynx 220 A CNC dreiebenk

Produktinformation

Feature	Specification
Max turning diameter	320 mm
Max turning length	Approx. 322 mm
Swing over bed	Approx. 510 mm

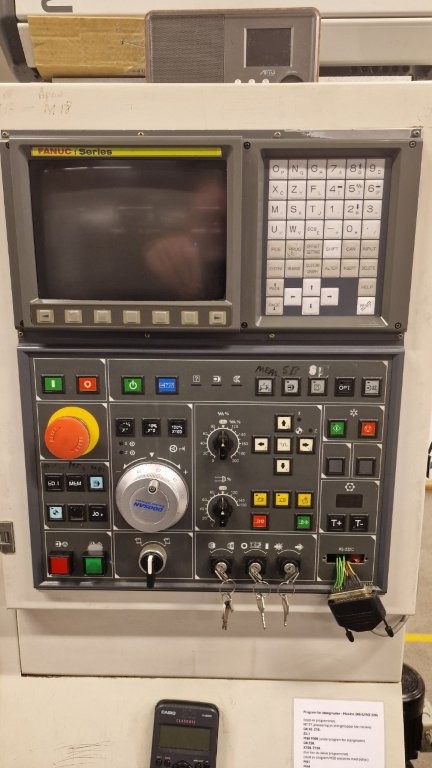

CNC control unit	FANUC (e.g., FANUC Oi-TD / i-Series)
Number of axes	2 (X / Z)
X-axis travel	Approx. 175 mm
Z-axis travel	Approx. 330 mm
Spindle motor power	~15 kW (≈20 HP)
Max spindle speed	6000 rpm

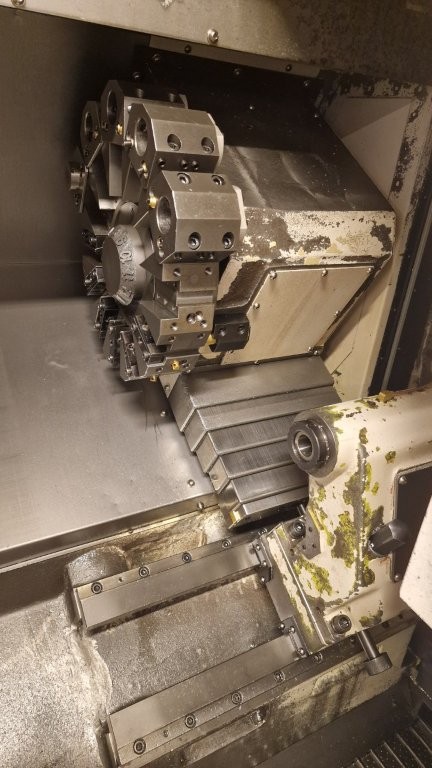

Turret capacity	12-station automatic turret
Max workpiece weight	Approx. 130 kg
Machine dimensions	Approx. 2325 × 1600 × 1655 mm (L × W × H)
Machine weight	Approx. 2900 kg
