| Manufacturer |
AMADA |
| Model |
AC255NT |
| Year |
2008 |
| Machine type |

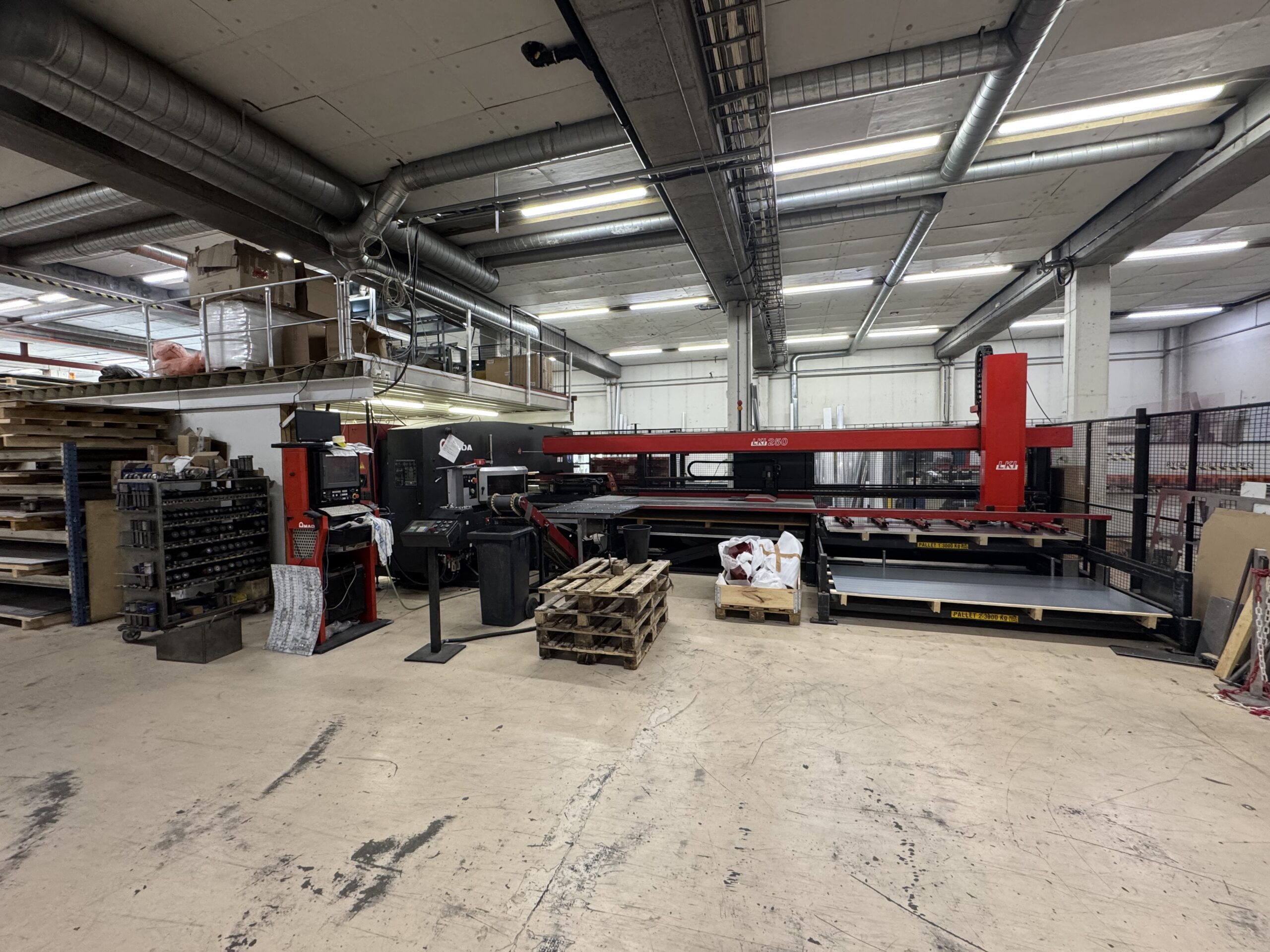

CNC Turret Punch Press |
| Punching force |
20 tons / 200 kN |
| Drive system |
Single AC Servo Drive |
| CNC control |
AMNC-F |
| X-axis travel |
1,270 mm |
| Y-axis travel |
1,270 mm |
| Sheet capacity with repositioning |
Approx. 2,500 × 1,270 mm |
| Max. mild steel thickness |
Approx. 3.2 mm |
| Max. workpiece weight |
Approx. 150 kg |
| Max. punching diameter |
Approx. Ø88.9 mm |

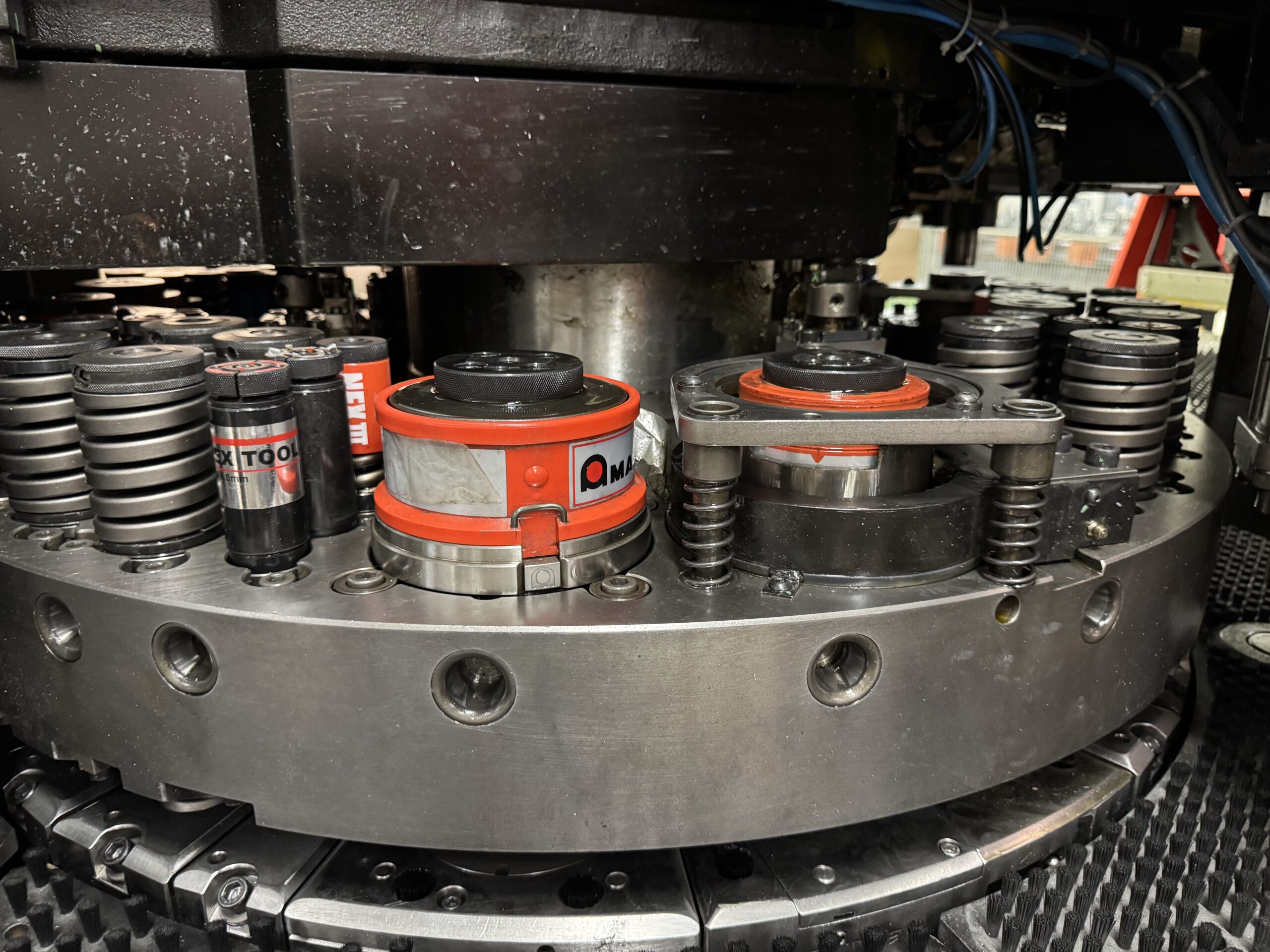

| Turret configuration |
Depending on configuration: 45 / 51 / 58 stations |
| Auto Index stations |
Depending on configuration |
| Turret rotation speed |
Approx. 30 rpm |
| Auto Index speed |
Approx. 60 rpm |
| Max. punching speed |
Approx. 370 strokes/min |
| Marking speed |
Up to approx. 900 strokes/min |
| Punching accuracy |
Approx. ±0.1 mm |
| Power requirement |
Approx. 19 kVA |
| Air pressure |
Approx. 5 bar |
| Machine weight |
Approx. 12,000 kg |
| Machine dimensions |
Approx. 4,100 × 2,560 mm, depending on configuration |
| Feeder |
Automatic sheet feeder / loading system |
| Sheet size for feeder |
Approx. 1,250 × 2,500 mm |
