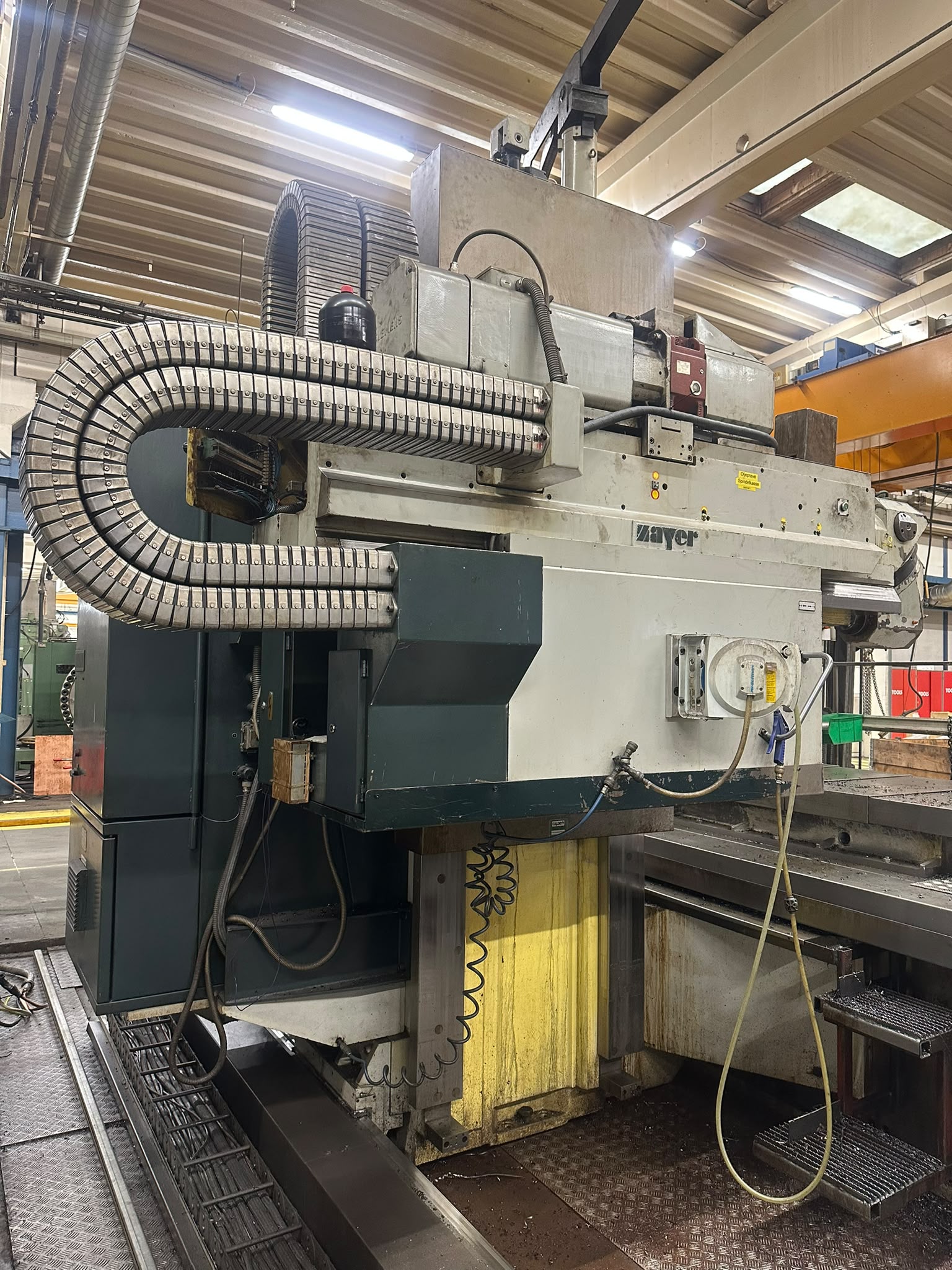

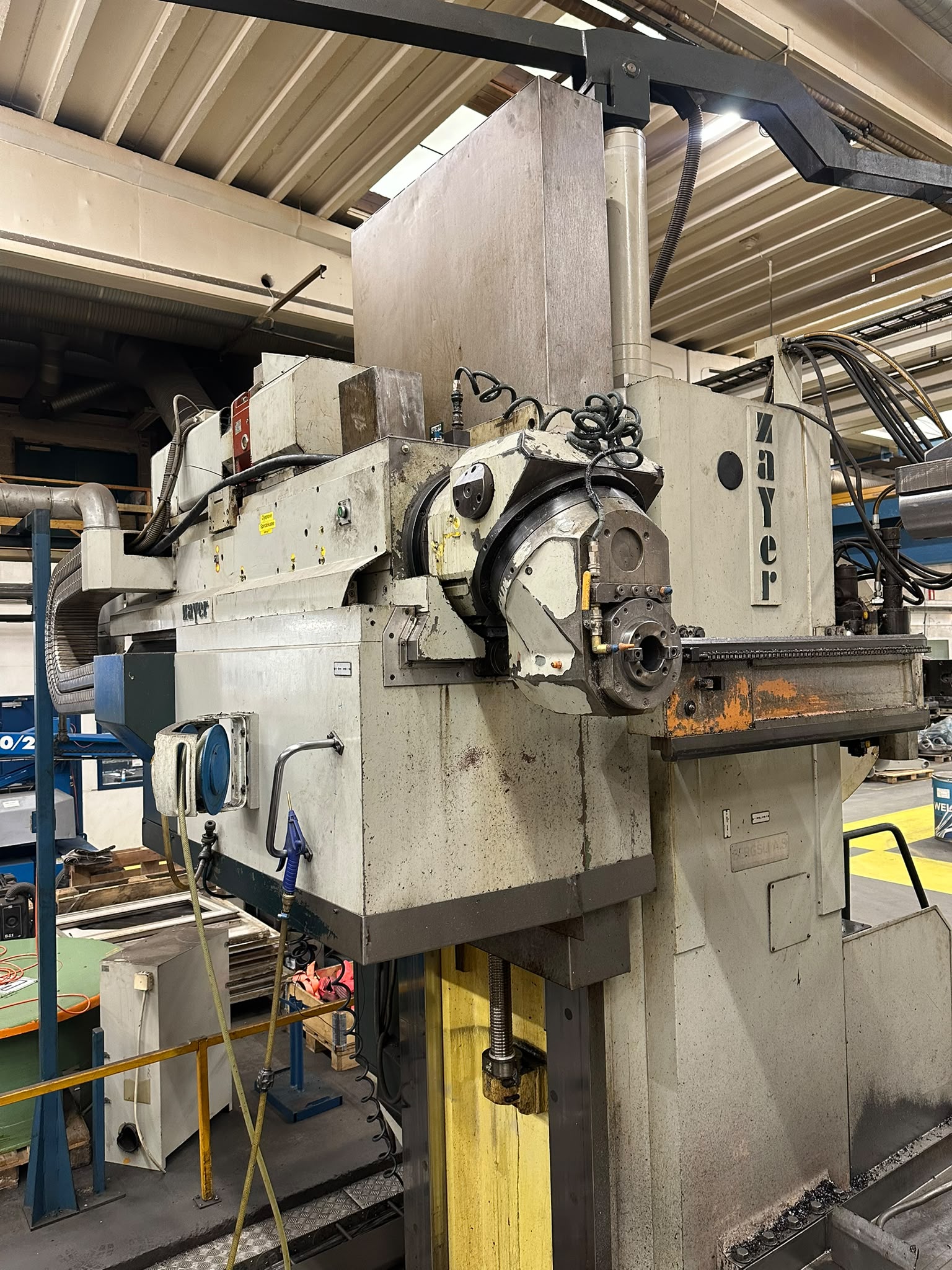

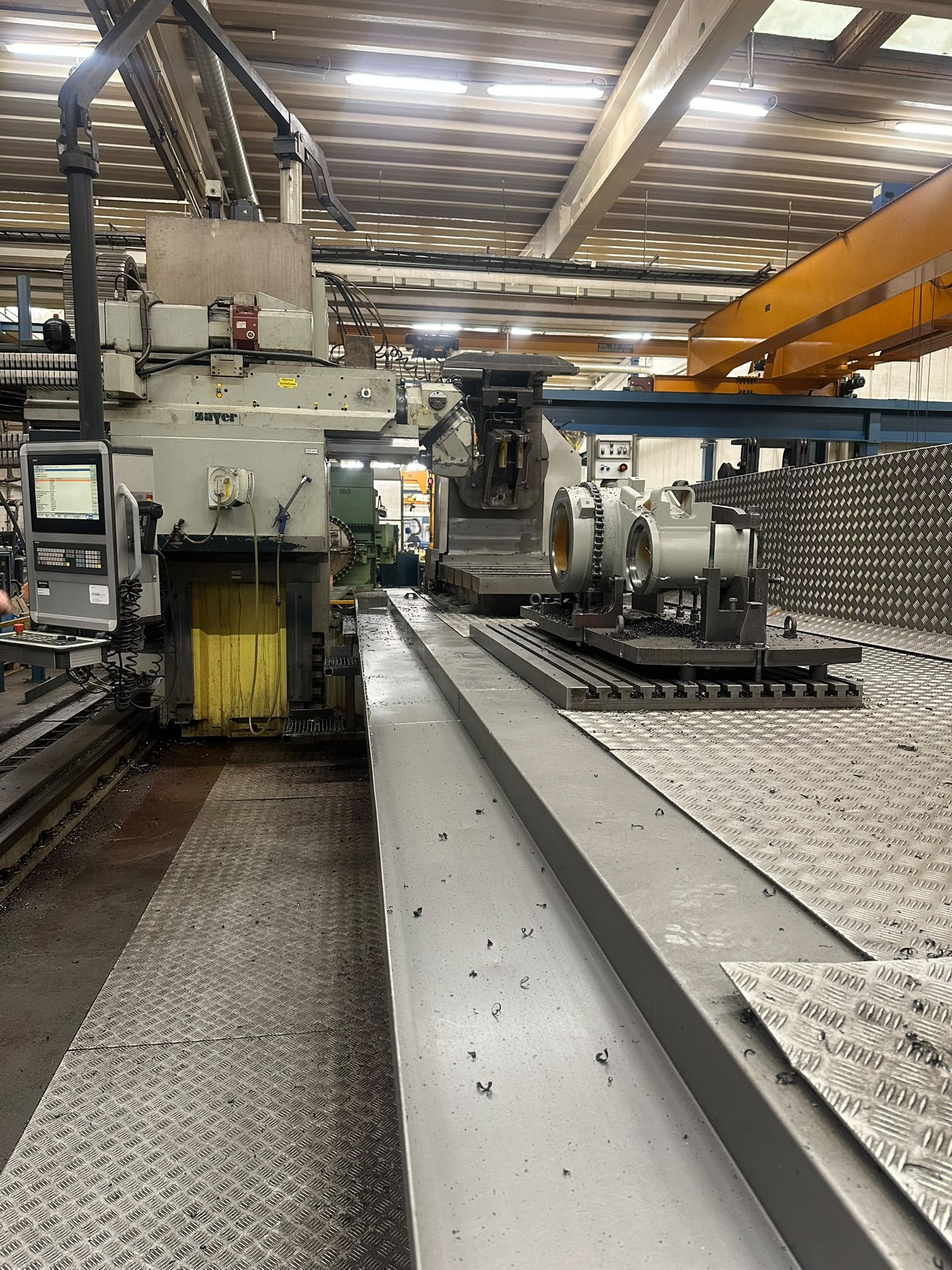

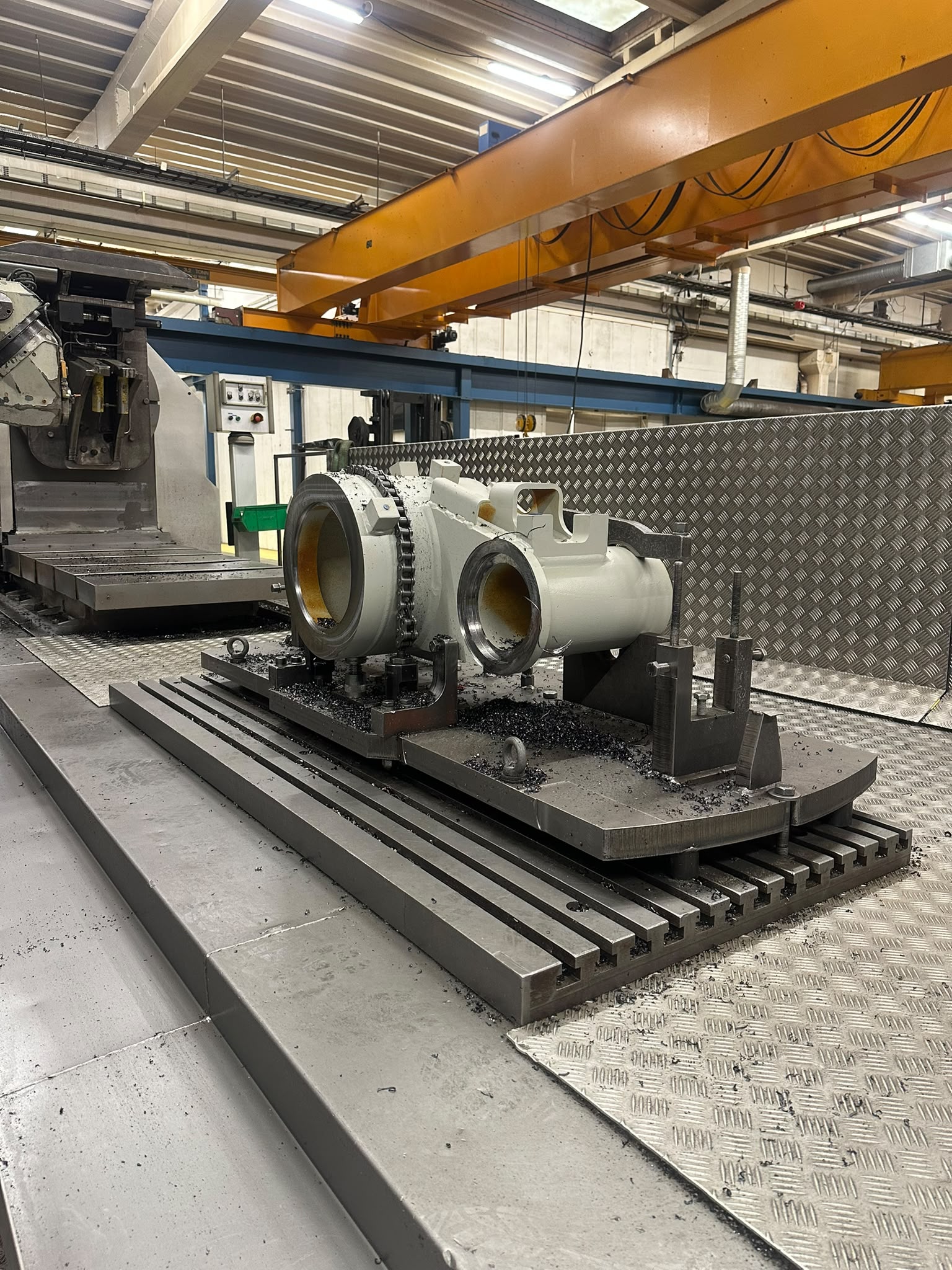

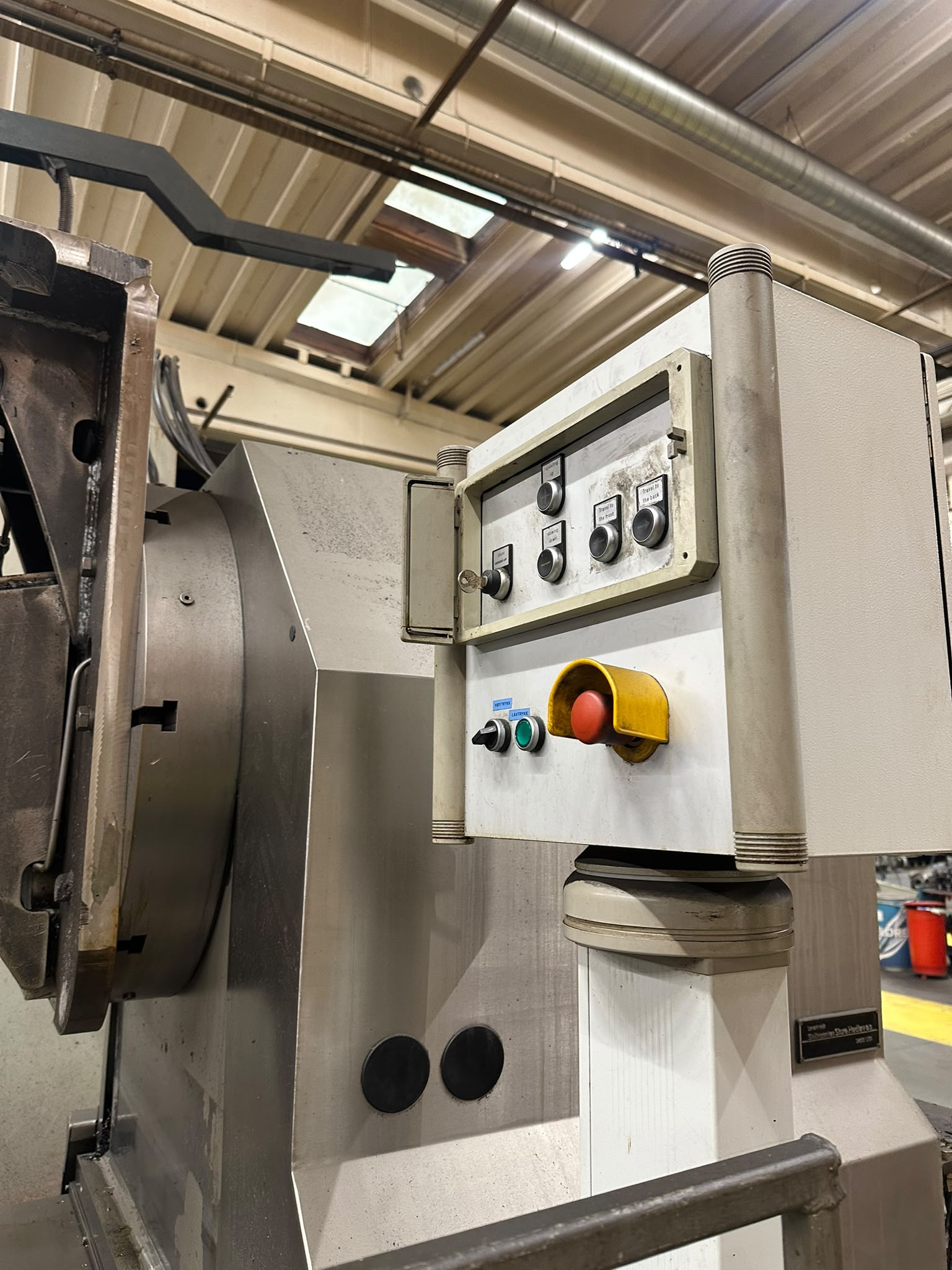

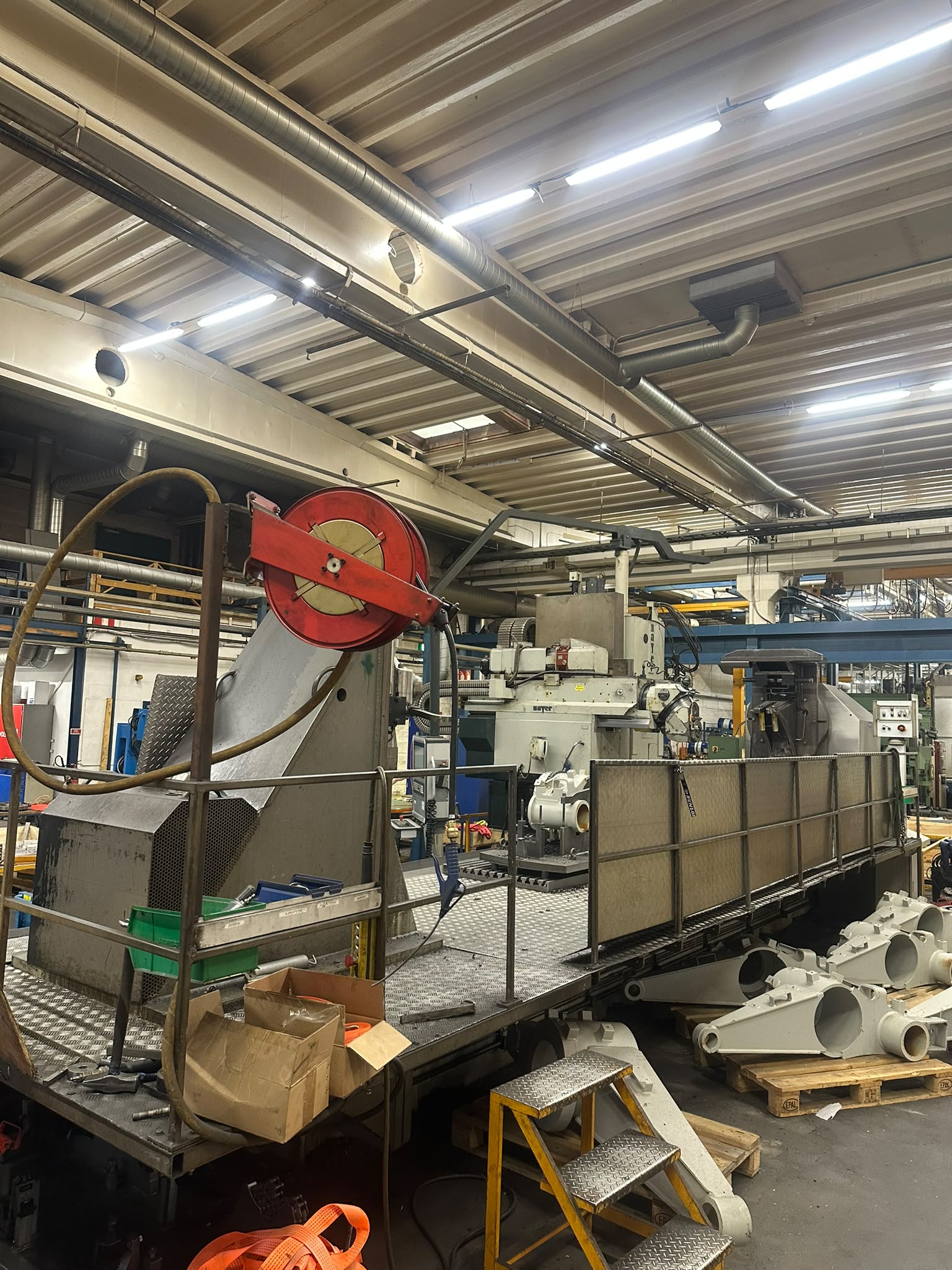

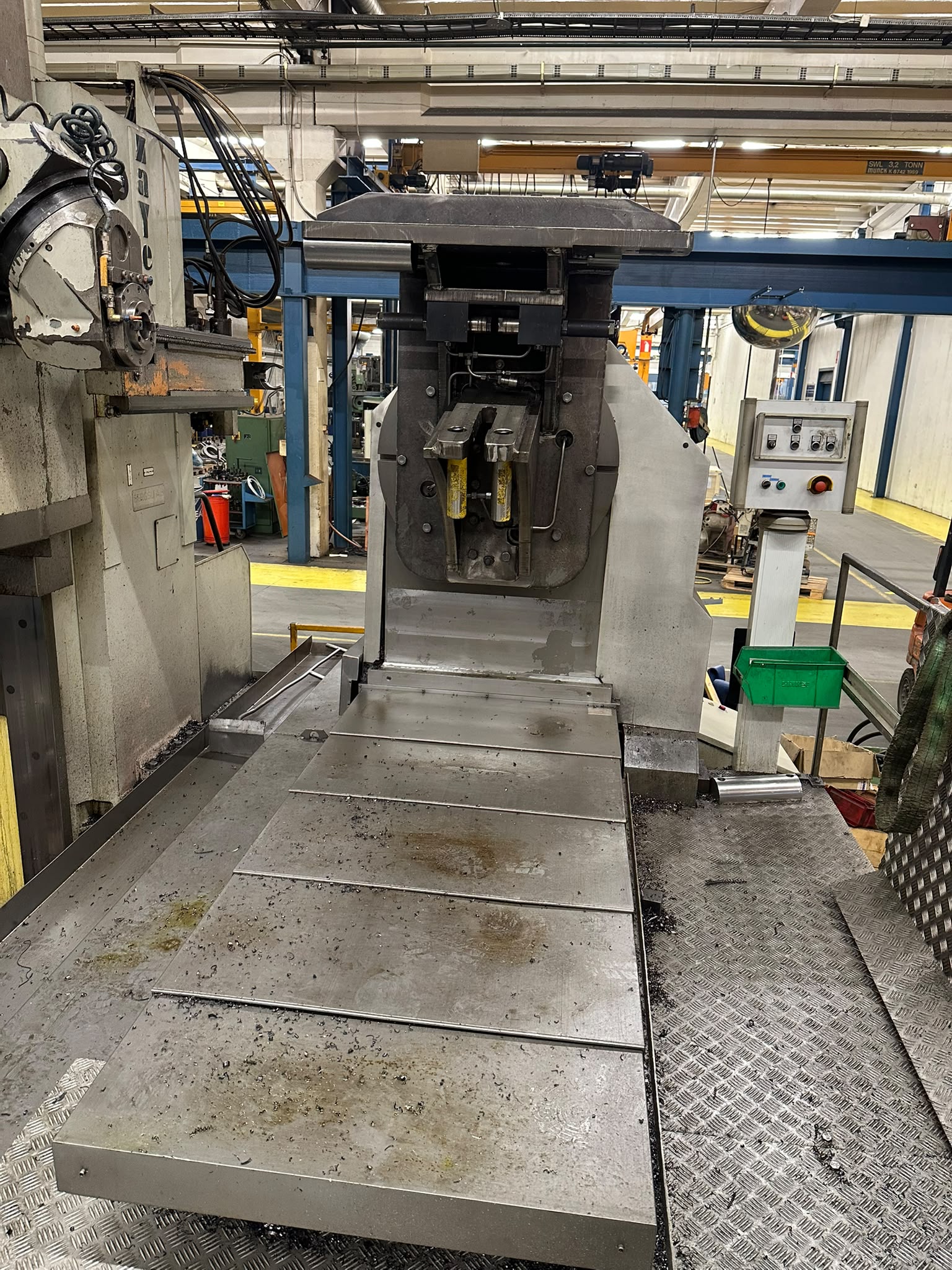

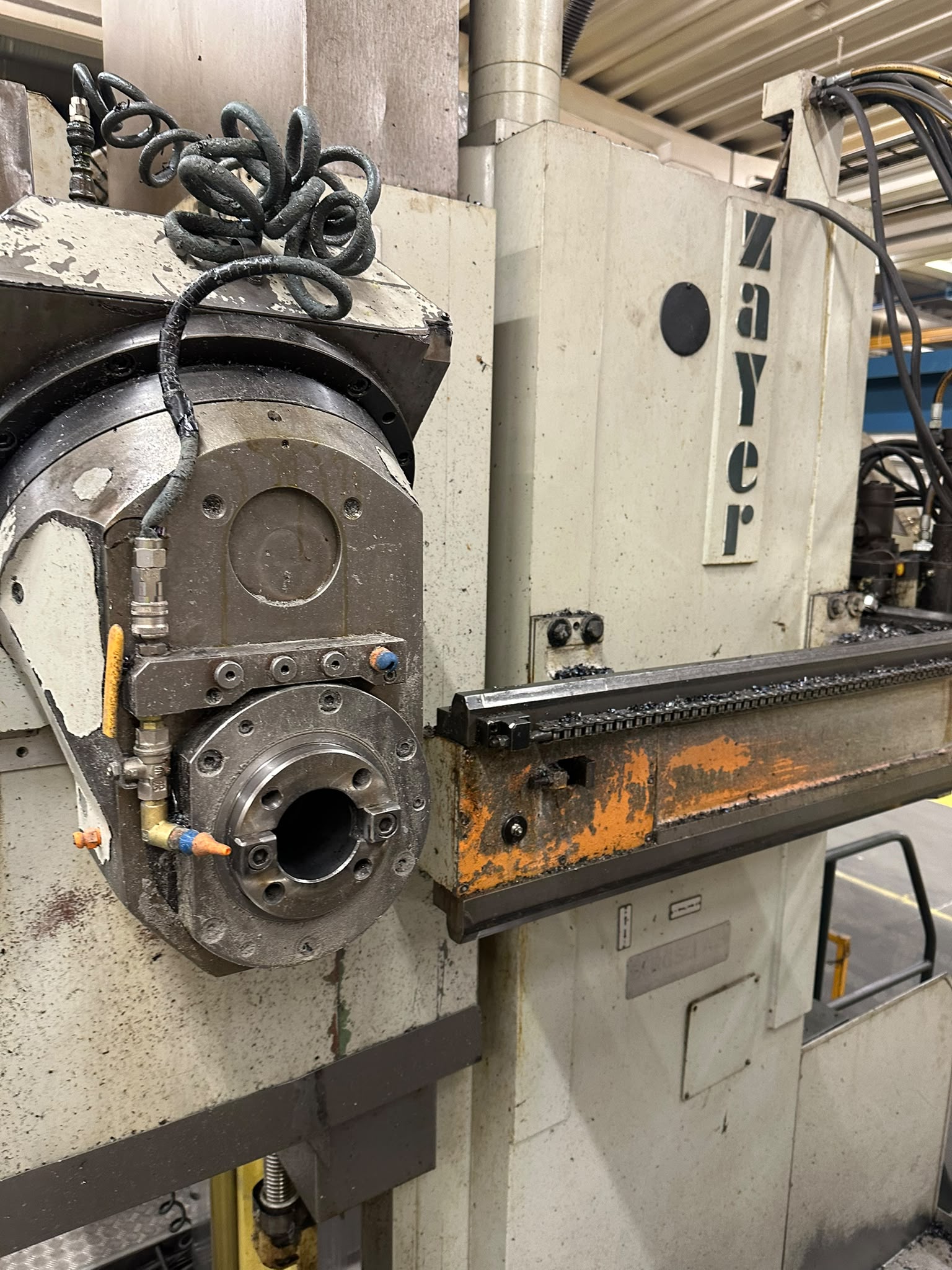

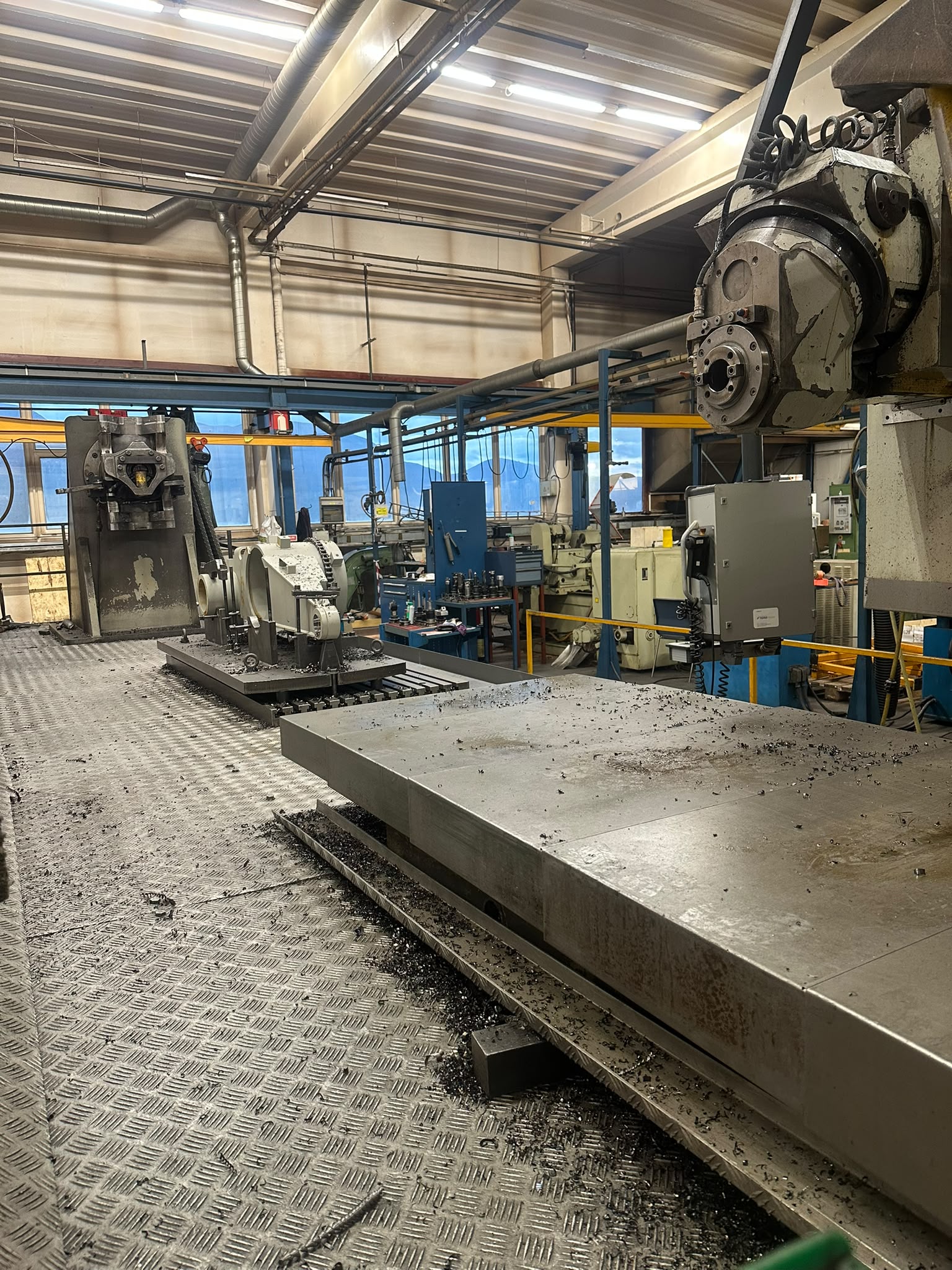

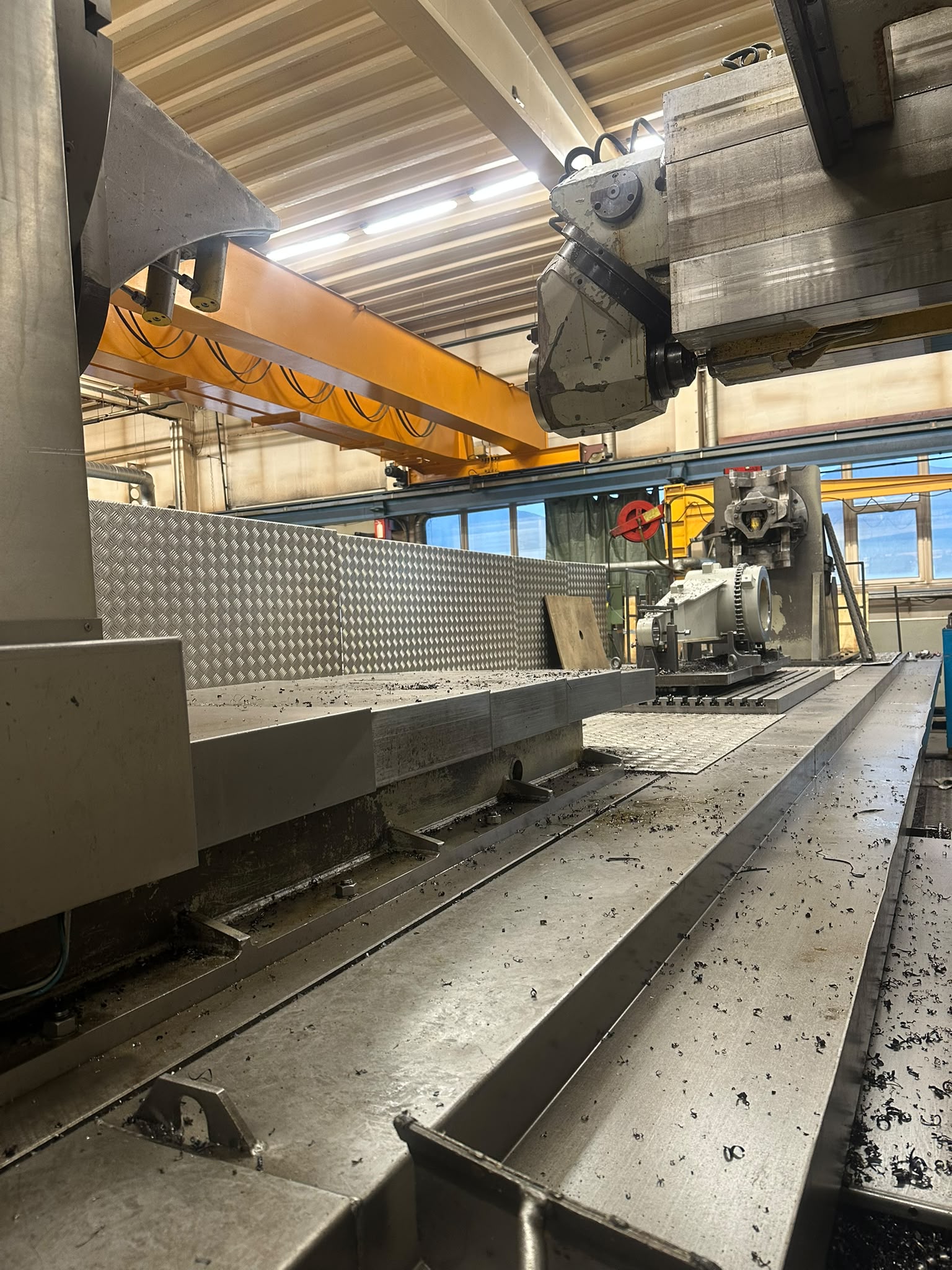

Zayer KMU 8000 CNC freseverk


  4.9
   12 reviews

Specification	Value
Manufacturer	ZAYER
Model	KMU 8000
Machine Type	CNC Machining Centre
Table Surface	8,000 × 1,000 mm
T-Slots (Number × Width × Spacing)	7 × 22 × 125 mm
Longitudinal Travel (X-Axis)	6,300 mm
Transversal Travel (Y-Axis)	1,000 mm (Special: 1,250 mm)
Vertical Travel (Z-Axis)	1,500 mm (Special: 2,000 mm)
Minimum / Maximum Distance from Table to Spindle Nose	23–1,523 mm (Special: 23–2,023 mm)

Specification	Value
Spindle Speed Range	35–3,000 rpm
Range I – Constant Torque	35–245 rpm
Range I – Constant Torque (Special)	20–110 rpm
Constant Torque	88 mkp (Special: 200 mkp)
Range I – Constant Power	245–1,000 rpm
Range I – Constant Power (Special)	110–450 rpm
Range II – Constant Power	980–3,000 rpm
Range II – Constant Power (Special)	430–1,800 rpm
Tool Taper	MAS BT50 (Special: ANSI 50)
Main Motor Power	30 HP

Specification	Value
Working Feed Rate	6–5,000 mm/min
Rapid Traverse	15,000 mm/min

Specification	Value
Tool Magazine Capacity	24 tools (Special: 30 or 60 tools)
Maximum Tool Weight	20 kg*

Specification	Value
Positioning Accuracy / Repeatability	±0.015 / 0.01 mm
Maximum Table Load	20,000 kg
Machine Net Weight	29,500 kg
